12m GENIE articulating boom lift electric rental?

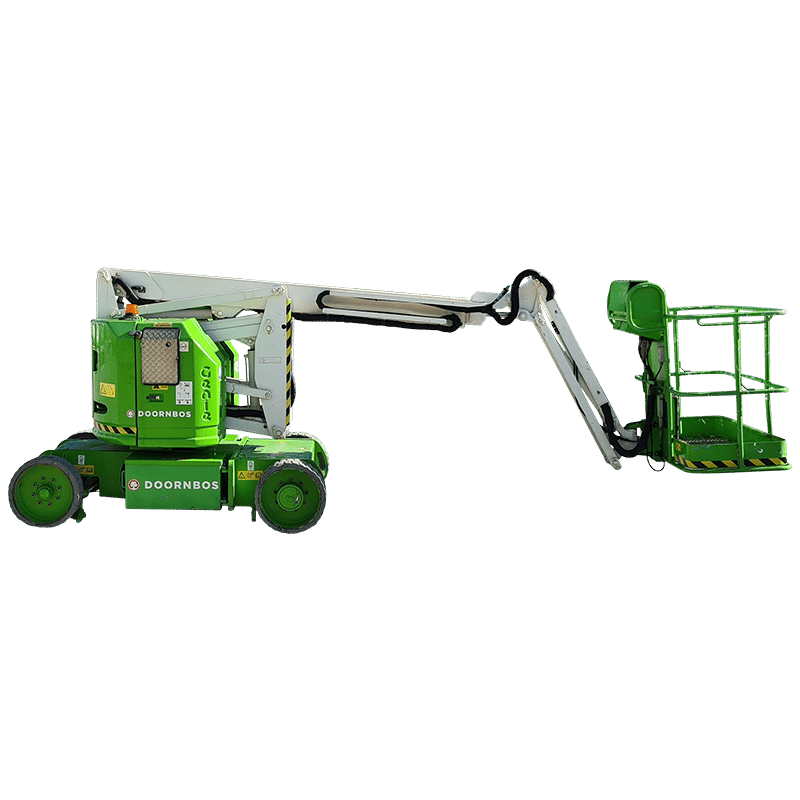

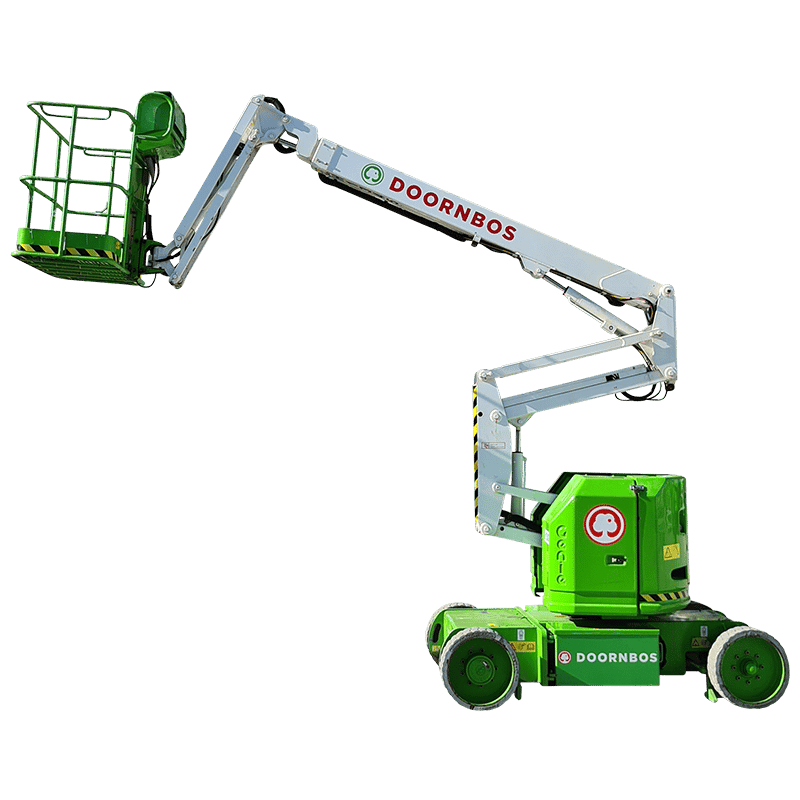

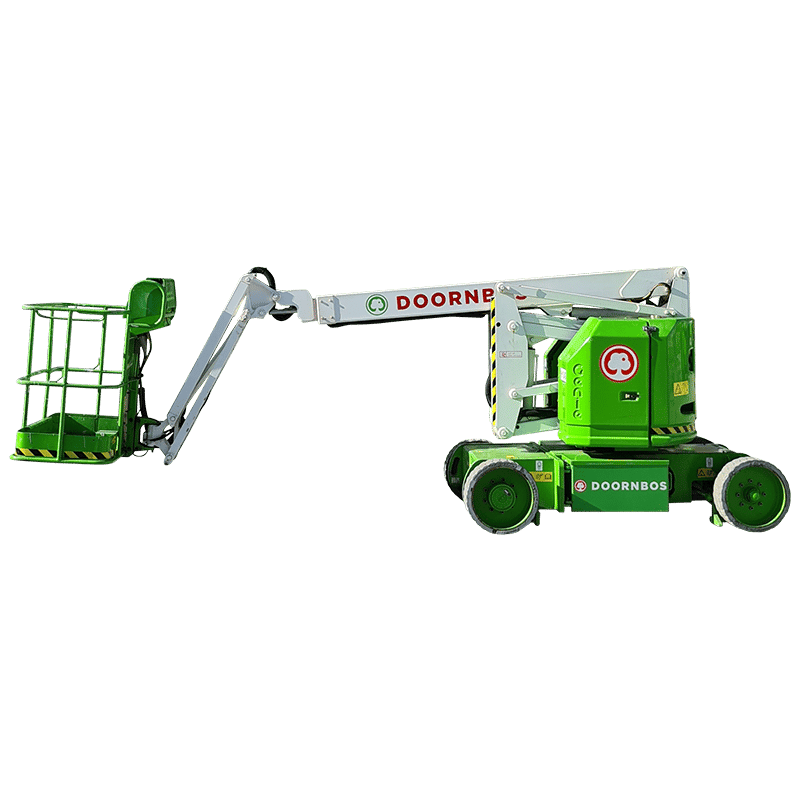

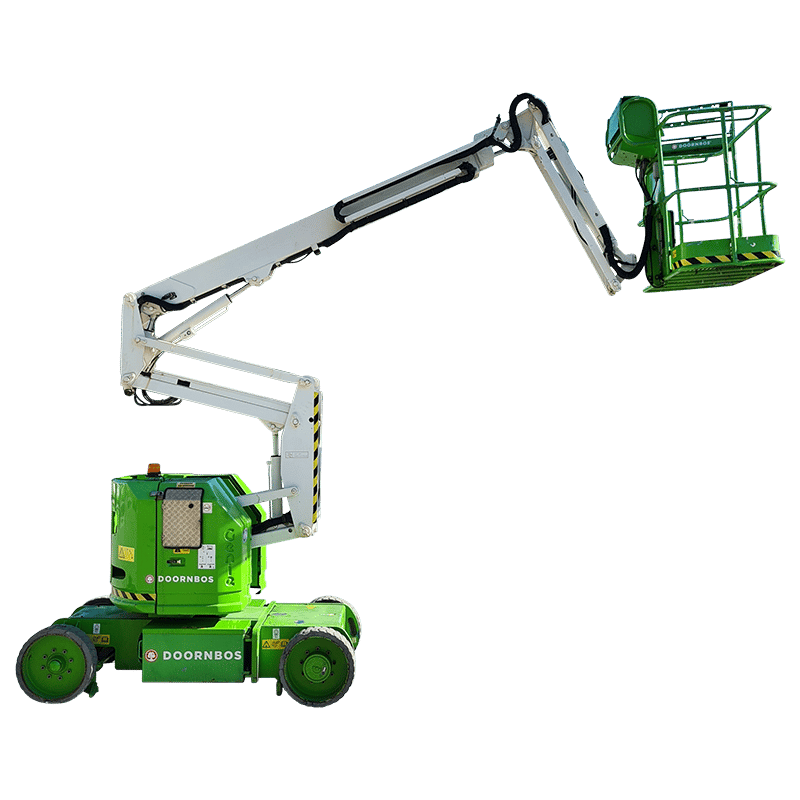

GENIE Z34 / 22N is an electric powered articulating boom lift with a working height of 12.52 m. With an articulating boom lift, you are very maneuverable because of the up-and-over-clearance, especially to overcome difficult obstacles. The platform of this machine can carry a maximum load of 227 kg. This includes operator and tools, for example. The 4×4 drive makes it possible to perform jobs on rough terrain as well. Of course, you also want the most durable option when renting an aerial work platform. The GENIE Z34 / 22N has a battery pack that must be charged by mains power.
- GENIE is a well-known and reliable aerial platform brand
- Simple operation
- Battery pack on 230V mains power
- We recommend the use of fall protection when working with our articulated boom lift. A safety harness is available for rent from us
- We can also arrange for driving plates, if needed for your operations
If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.
Specifications

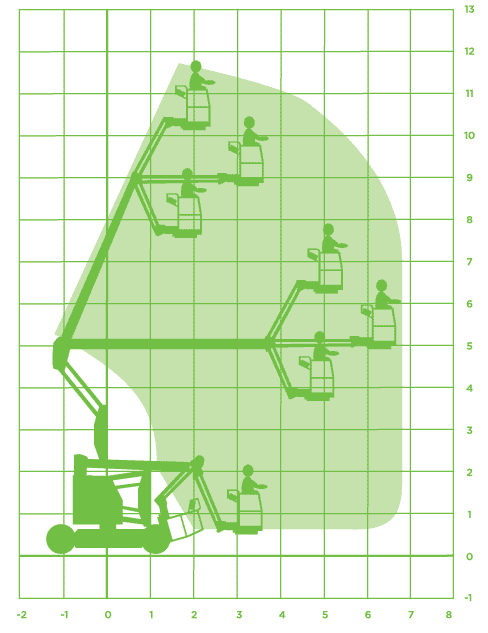

Working Height:
12,52 m
Floor height:
10,52 m
Horizontal working range:
6,78 m
Max. Up and Over Clearance
4,62 m
Jib Length:
1,22 m
Working range Jib horizontal:
n/a
Working range Jib vertical:
139°
Max. lifting capacity:
227 kg
Platform Dimensions (LxW):
1.42 x 0.76 m
Platform Rotation:
Yes
Platform Levelling:
Yes
Max. horizontal force:
about 40 kg
Max wind speed:
Wind force 6
Setup Width:
1,47 m
Transport dimensions (LxWxH):
5.72 x 1.47 x 2.00 m
Total weight:
5,171 kg
Max skew:
4,5°
Power/Fuel:
Electric
Four-wheel drive:
No
Four-wheel steering:
No
Tyres:
Solid
Non-marking
Yes
Ride height from work platform:
12,50 m
Power connection in work platform:
No
