15m GENIE articulating boom lift hybrid rental?

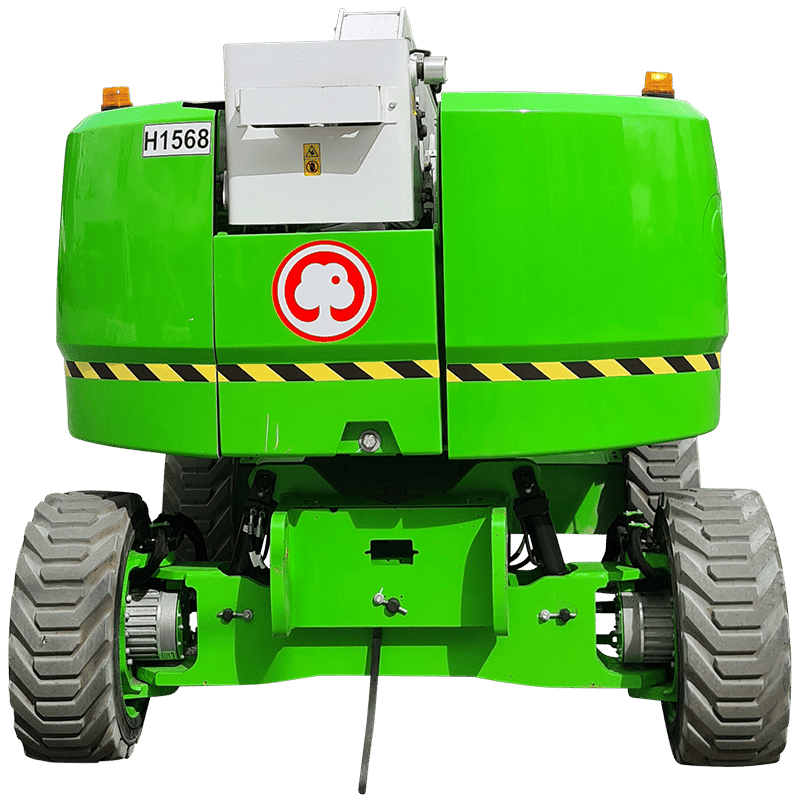

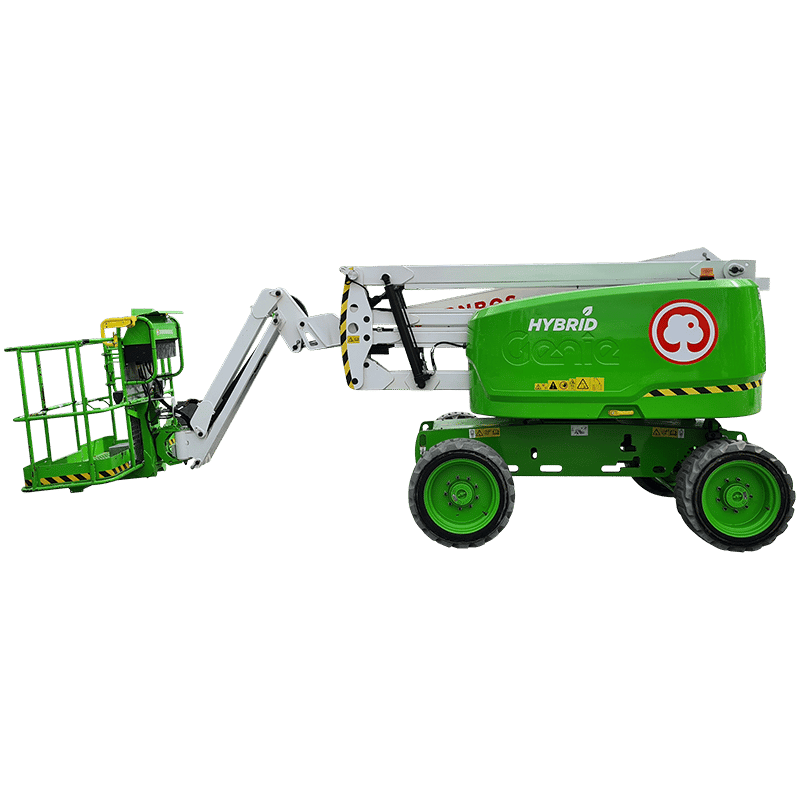

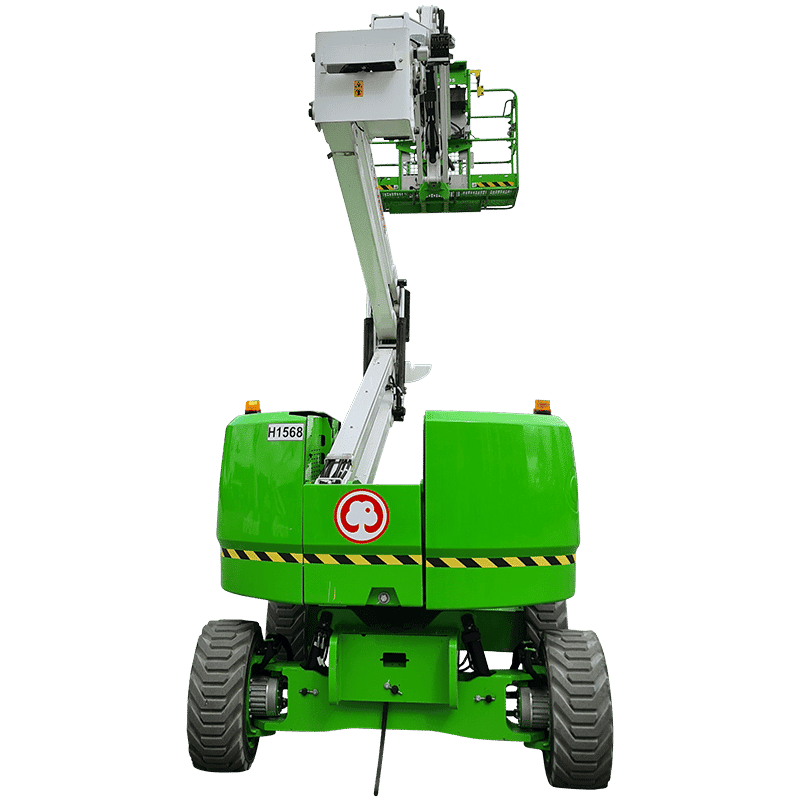

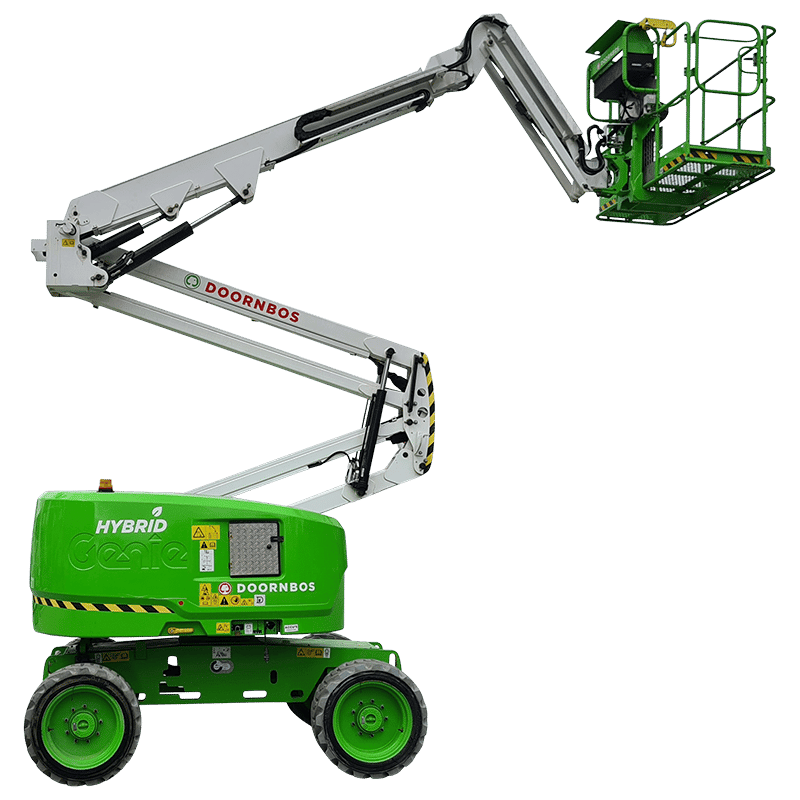

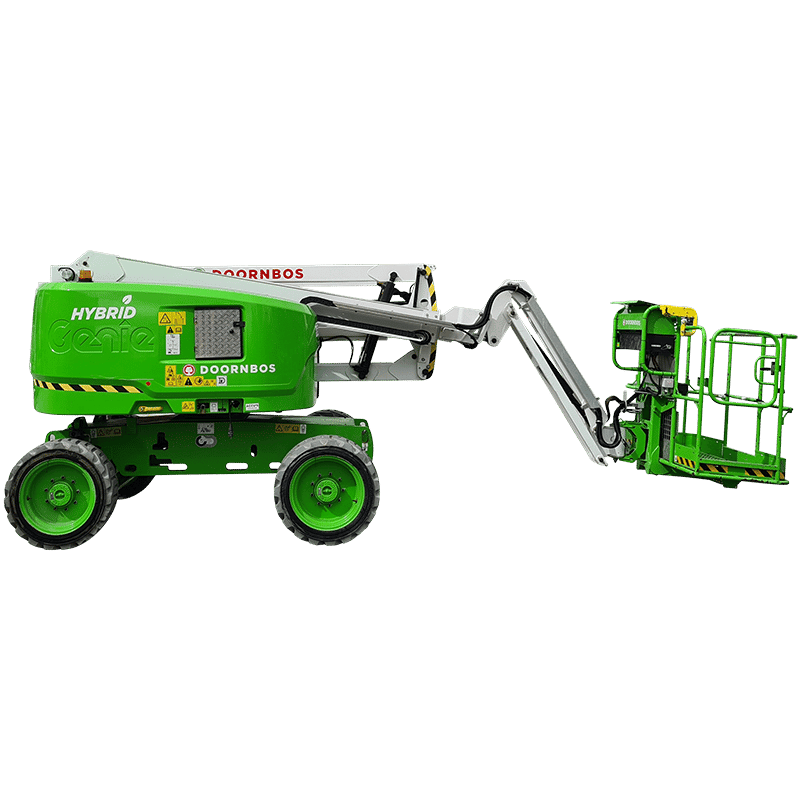

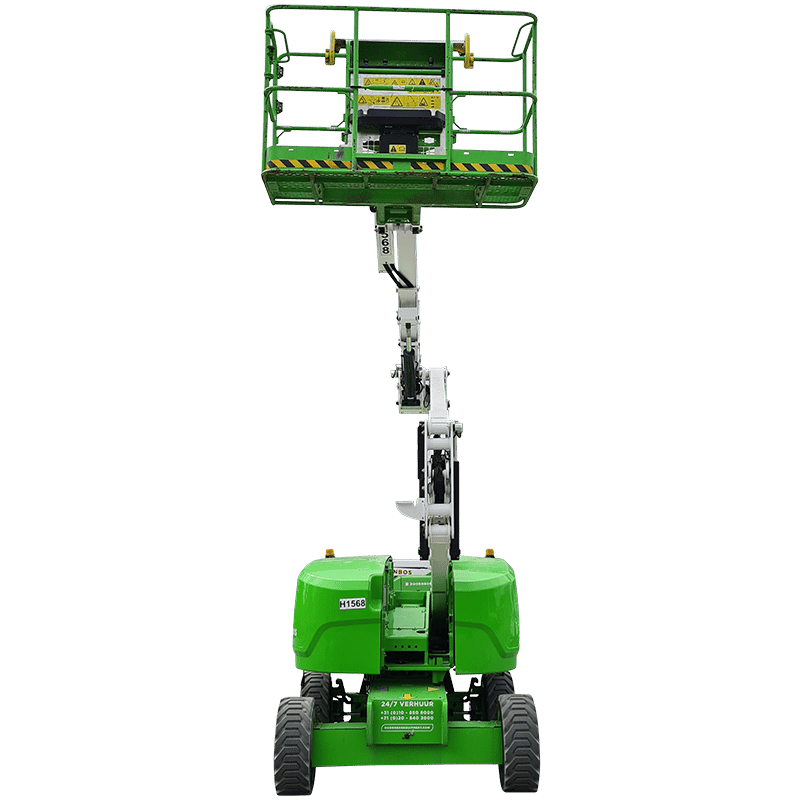

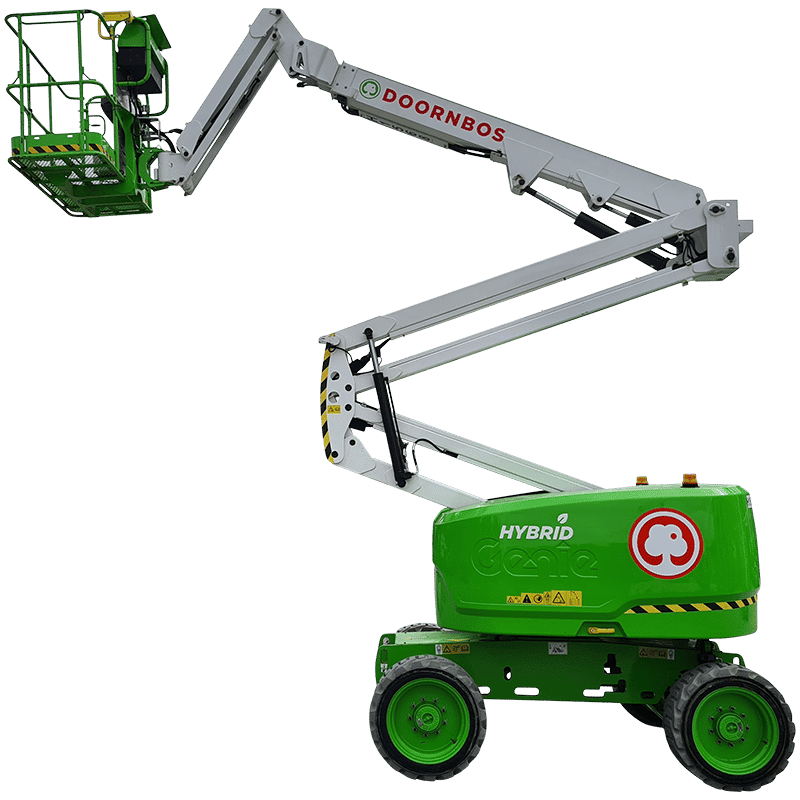

The Genie Z45-FE is a hybrid powered articulating boom lift with a working height of 15.92 m. With an articulating boom lift, you are very maneuverable because of the up-and-over-clearance, especially to overcome difficult obstacles. The platform of this machine can carry a maximum load of 300kg. This includes operator and tools, for example. The 4×4 drive makes it possible to perform jobs on rough terrain as well. Of course, you also want the most durable option when renting an aerial work platform. The Genie Z45-FE has a hybrid drive with diesel engine and battery pack. So this machine can operate completely electric as well as diesel. When working on diesel, the battery pack is recharged in the meantime, and then electric work can resume.
- Genie is a well-known and reliable AWP brand
- Simple operation
- Hybrid drive; electric operation on 230V (mains)
- We recommend the use of fall protection when working with our articulated boom lifts. A safety harness is available for rent from us
- We can also arrange for driving plates, if needed for your operations
If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.
Specifications

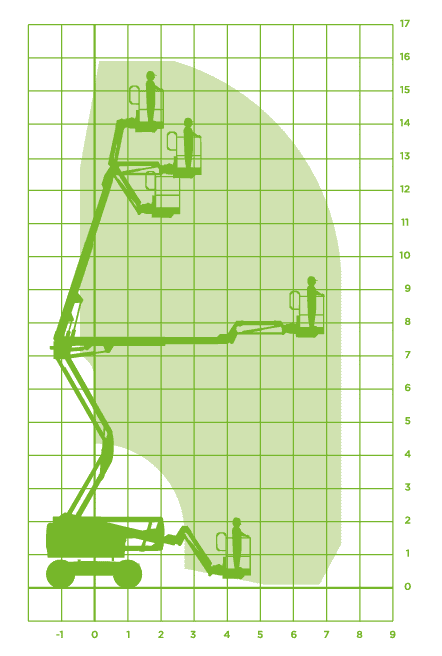

Working Height:
15,92 m
Floor height:
13,92 m
Horizontal working range:
6,94 m
Max. Up and Over Clearance
7,50 m
Jib Length:
1,52 m
Working range Jib horizontal:
160°
Working range Jib vertical:
135
Max. lifting capacity:
300 kg
Platform Dimensions (LxW):
1.83 x 0.76 m
Platform Rotation:
Yes
Platform Levelling:
Yes
Max horizontal force:
about 40 kg
Max wind speed:
Wind force 6
Setup Width:
2,29 m
Transport dimensions (LxWxH):
5.87 x 2.29 x 2.29 m
Total weight:
6,559 kg
Max skew:
4,5°
Power/Fuel:
Hybrid
Four-wheel drive:
Yes
Four-wheel steering:
No
Tyres:
Foam-filled
Non-marking
yes
Driving Height from Platform:
15,92 m
Power connection in work basket:
No
