18m JLG articulating boom lift electric rental?

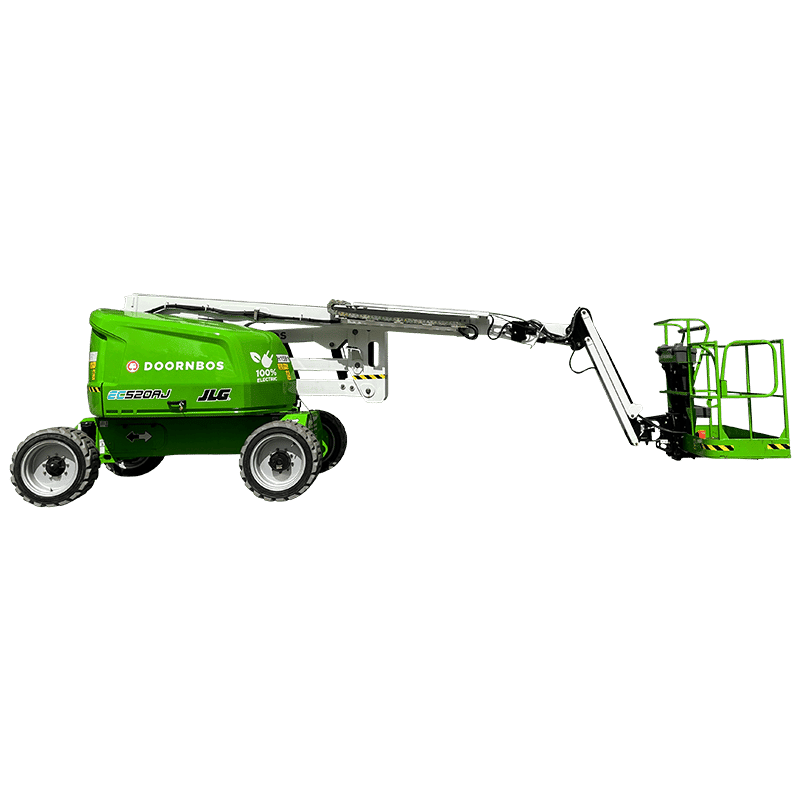

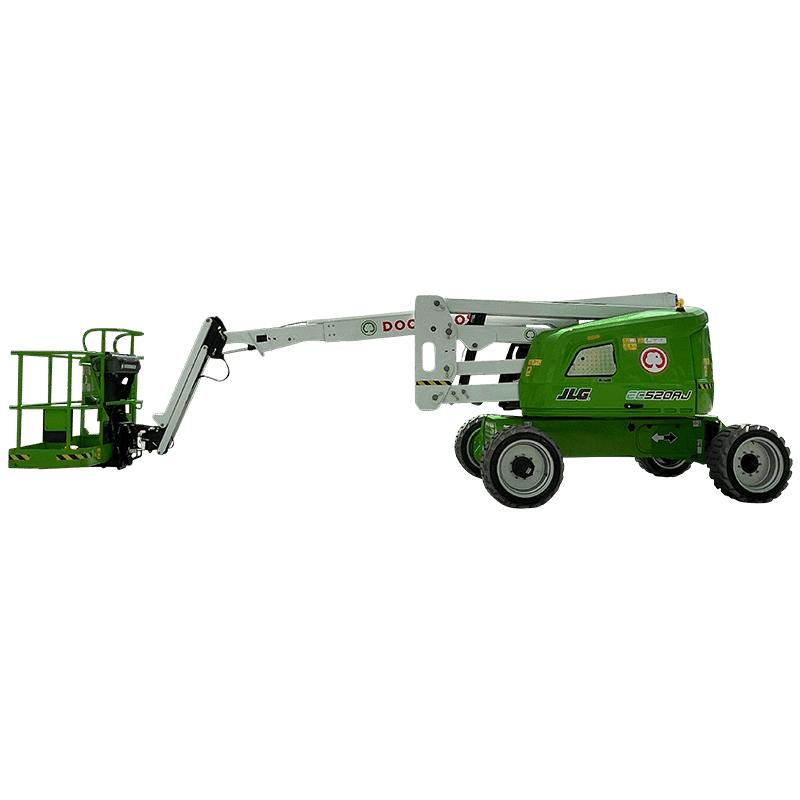

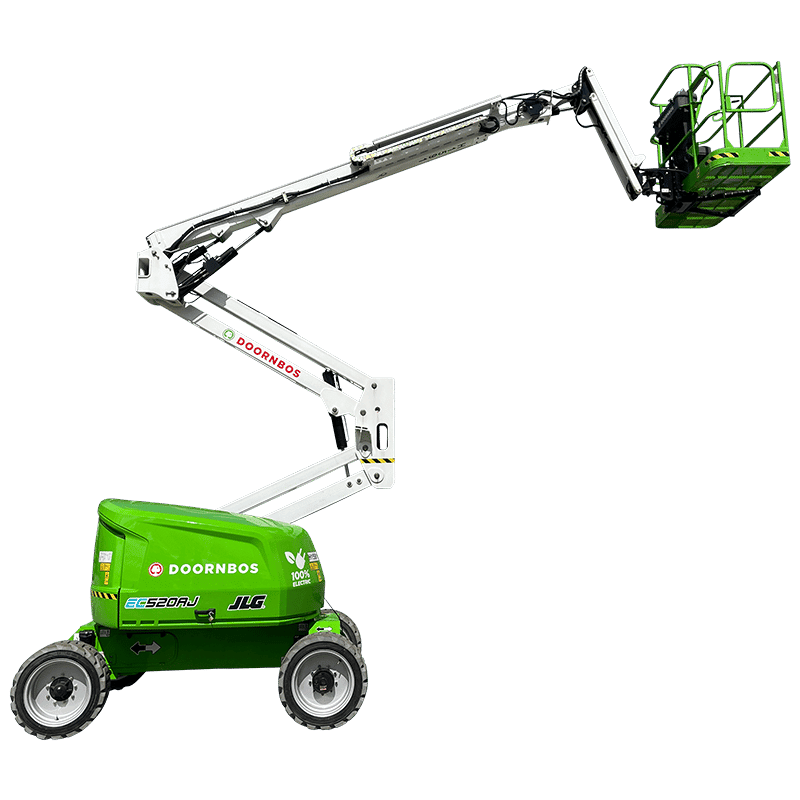

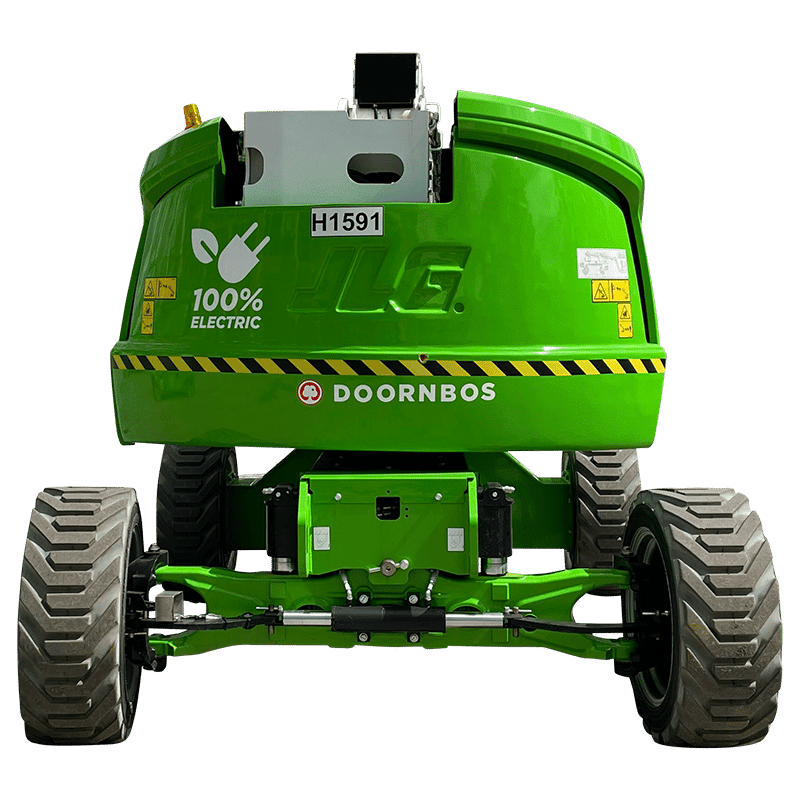

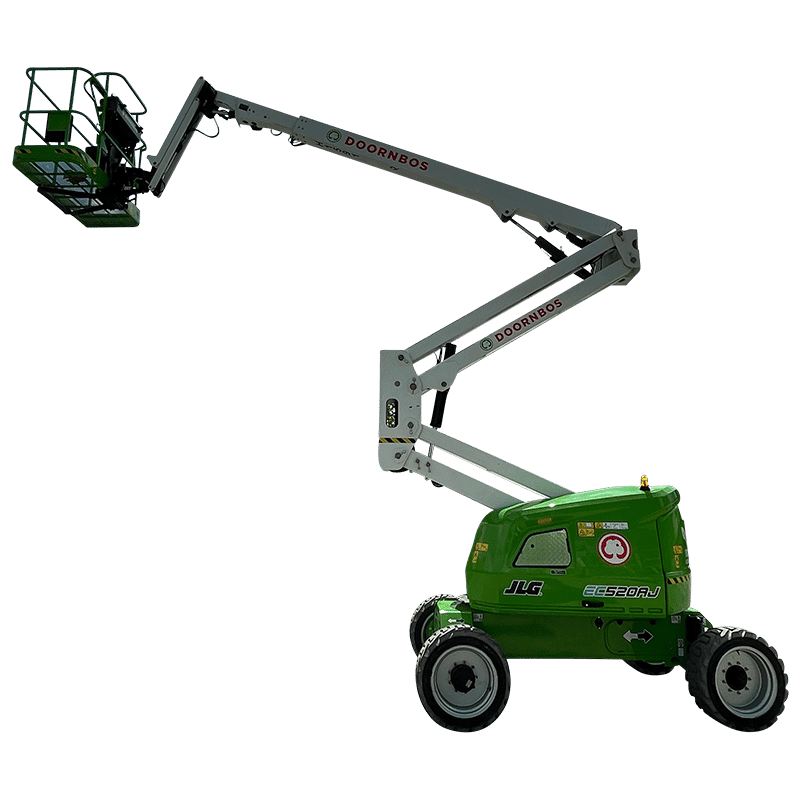

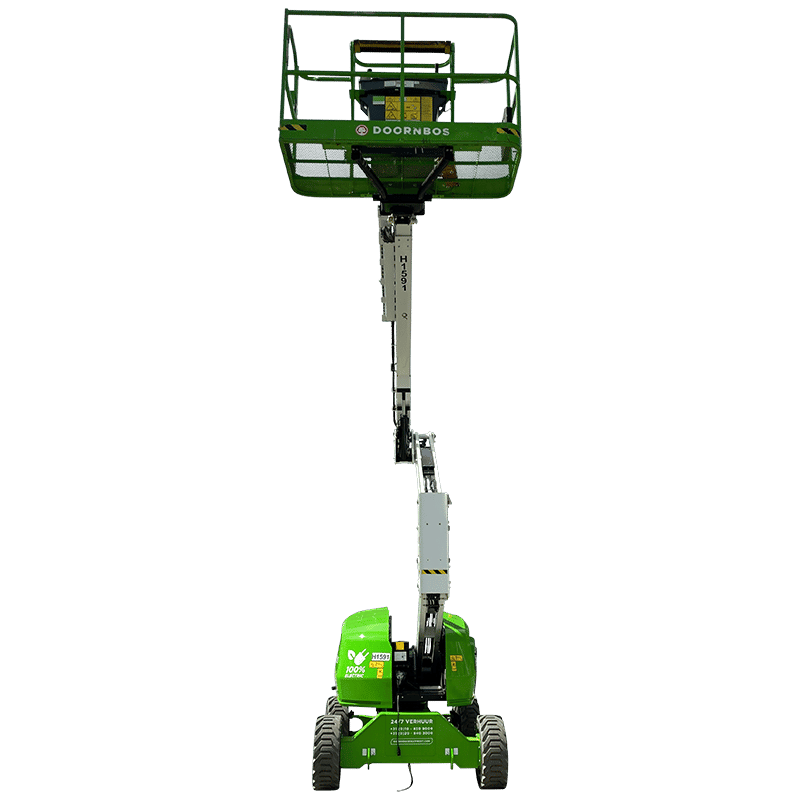

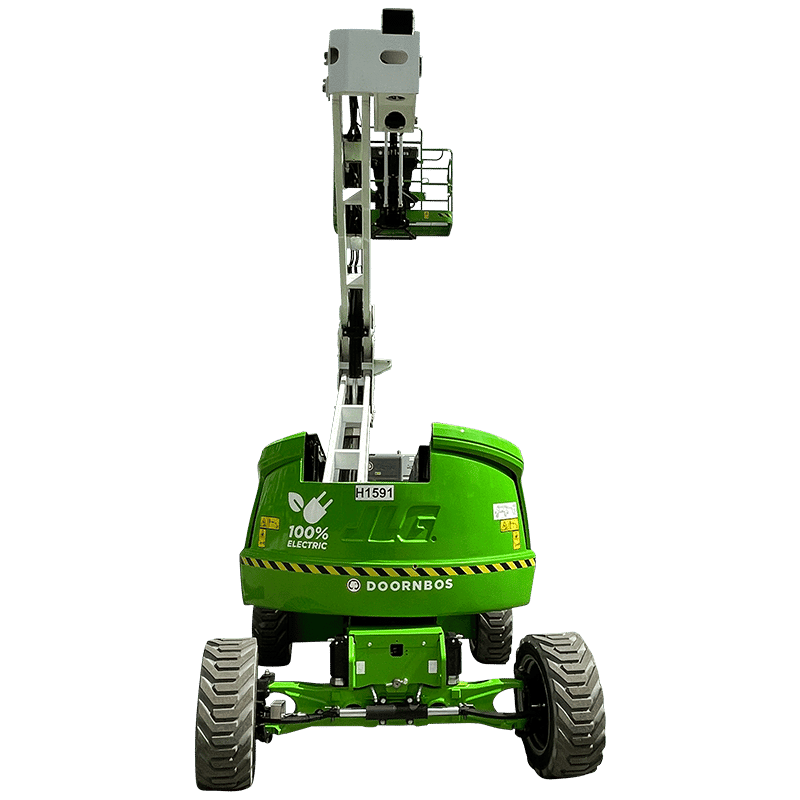

The JLG 520 EC AJ is an electric powered articulating boom lift with a working height of 18.00 m. With an articulating boom lift, you are very maneuverable because of the up-and-over-clearance, especially to overcome difficult obstacles. The platform of this machine can carry a maximum load of 250 kg. This includes operator and tools, for example. The 4×4 drive makes it possible to perform jobs on rough terrain as well. Of course, you also want the most durable option when renting an aerial work platform. The JLG 520 EC AJ has a battery pack that must be charged with mains electricity (230V).

  • JLG is a well-known and reliable aerial work platform brand
  • Simple operation
  • Battery pack on 230V (mains)
  • We recommend the use of fall protection when working with our articulated boom lift. A safety harness is available for rent from us
  • We can also arrange for driving plates, if needed for your operations

If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.

Specifications
Downloads
Trainings

Specifications

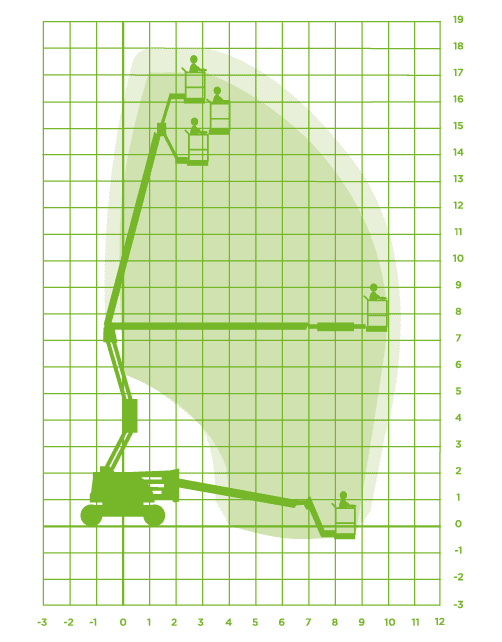

Working Height:

18,00 m

Floor height:

16,00 m

Horizontal working range:

10,65 m

Max. Up and Over Clearance

7,30m

Jib Length:

1,24 m

Working range Jib horizontal:

N/A.

Working range Jib vertical:

144° (+76° /-69°)

Max. lifting capacity:

250 kg

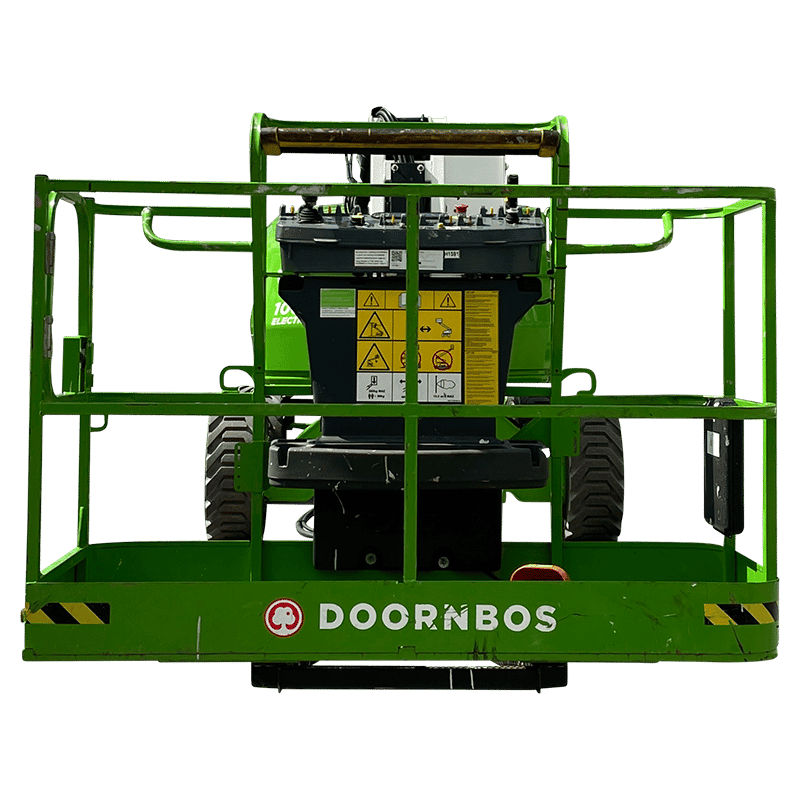

Platform Dimensions (LxW):

1.83 x 0.76 m

Platform Rotation:

Yes

Platform Levelling:

Yes

Max horizontal force:

about 40 kg

Max wind speed:

Wind force 6

Setup Width:

2,36 m

Transport dimensions (LxWxH):

7.77 x 2.35 x 2.27 m

Total weight:

8,085 kg

Max skew:

Power/Fuel:

Electric (230V)

Four-wheel drive:

Yes

Four-wheel steering:

No

Tyres:

Foam-filled

Non-marking

yes

Driving Height from Platform:

18 m

Power connection in work basket:

No

More specificationsLess specifications
