40m JLG articulating boom lift diesel rental?

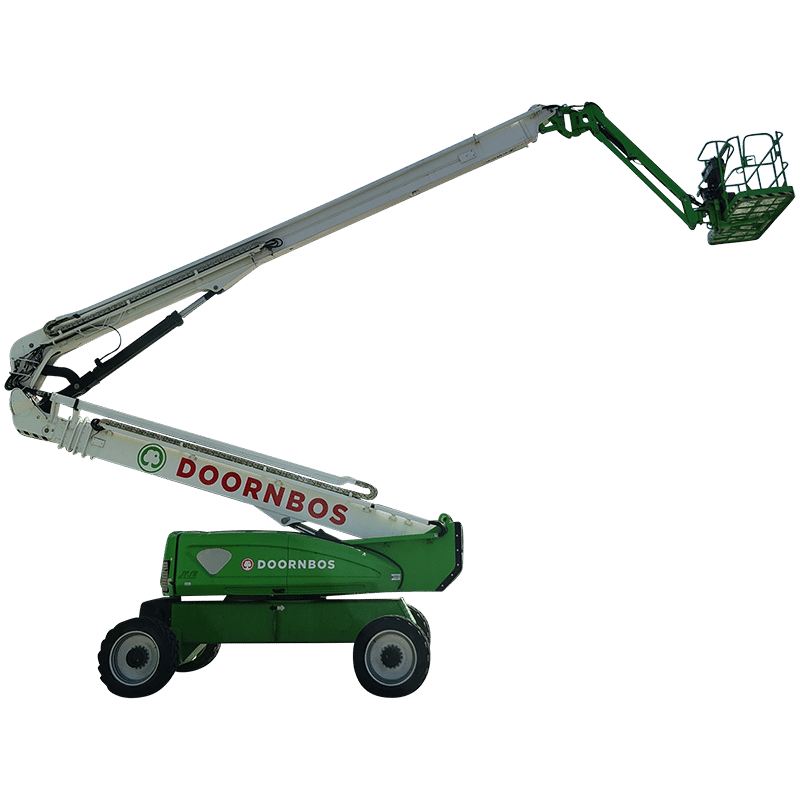

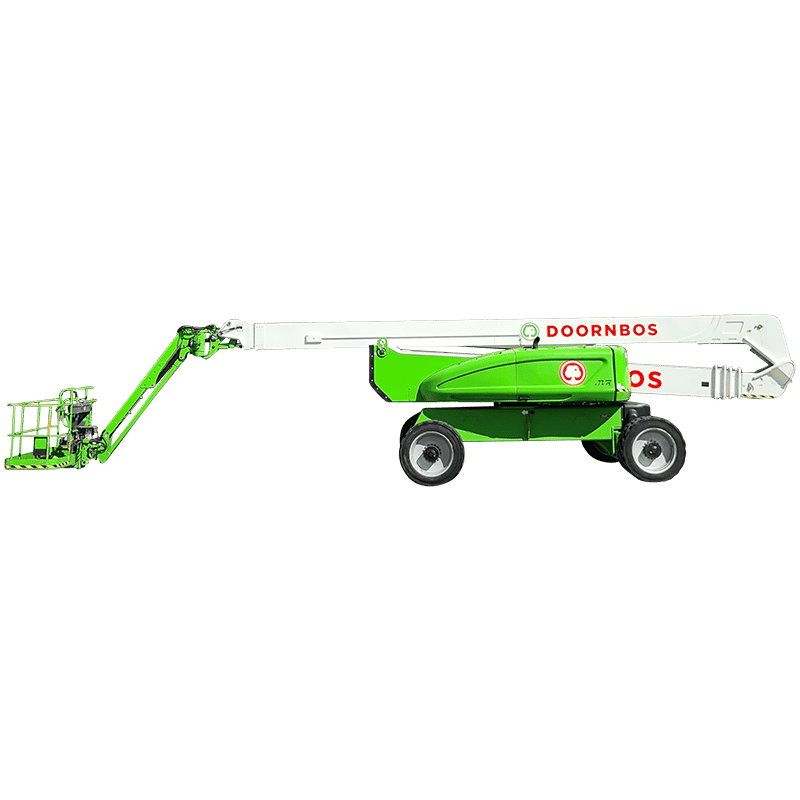

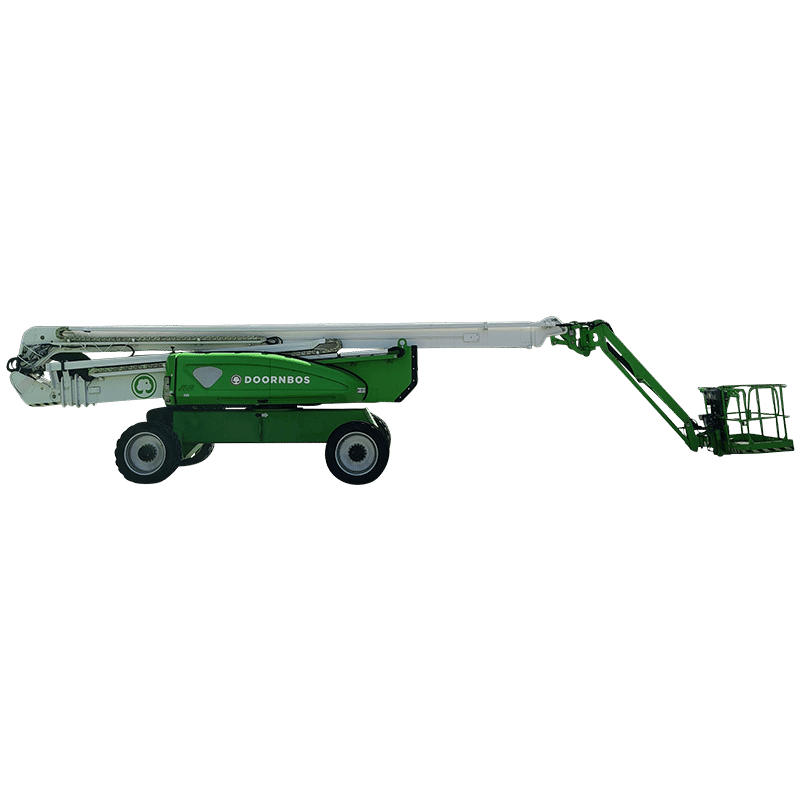

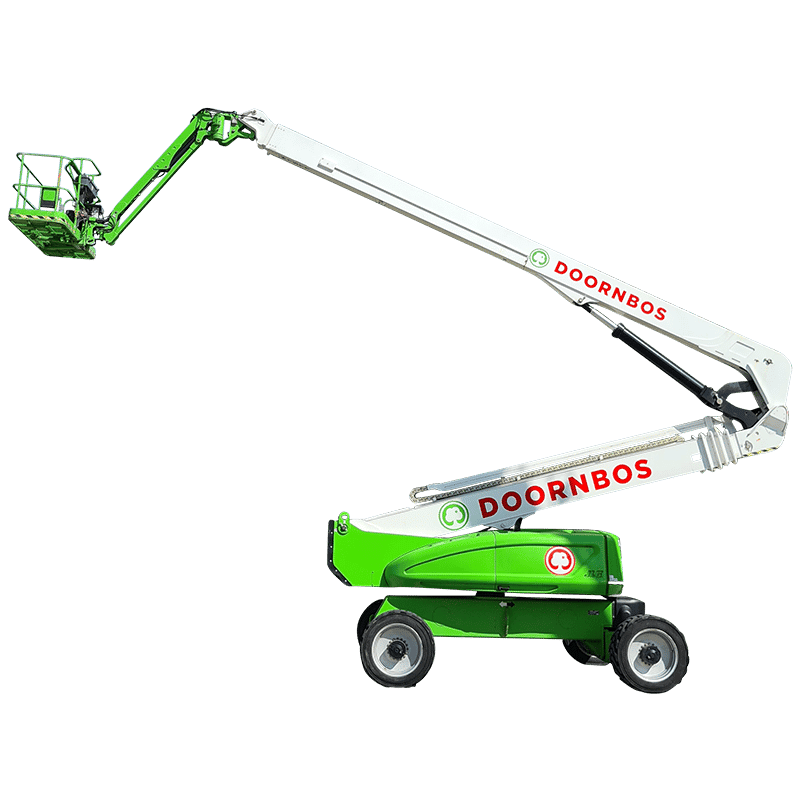

40m JLG articulated boom lift diesel rental? The JLG 1250 AJP is a diesel-powered articulated boom lift with a 40.30 m working height. With an articulated boom lift, you are very maneuverable because of the up-and-over-clearance, especially to overcome difficult obstacles. The platform of this machine can carry a maximum load of 230 kg / 450 kg. This includes operator and tools, for example. The 4×4 drive makes it possible to perform jobs on rough terrain as well.
- JLG is a well-known and reliable aerial work platform brand
- Simple operation
- We recommend the use of fall protection when working with our articulated boom lifts. A safety harness is available for rent from us
- We can also arrange for driving plates, if needed for your operations
If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.
Specifications
Working Height:
40,30 m
Floor height:
38,30 m

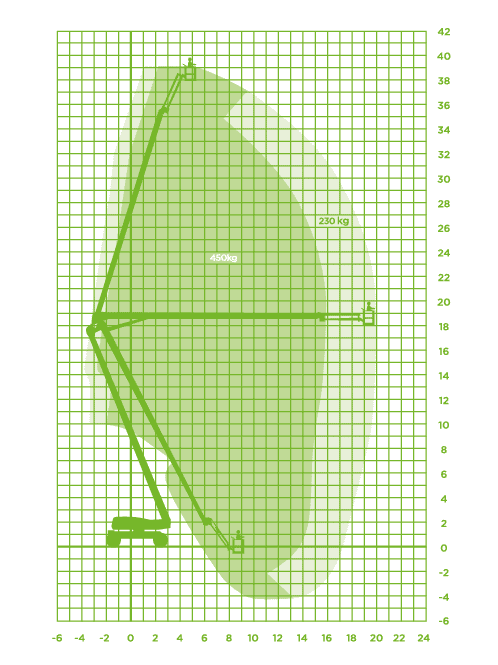

Horizontal working range:
19,90 m
Max. Up and Over Clearance:
18,44 m
Jibl length:
2,44 m
Working range Jib horizontal:
180°
Working range Jib vertical:
130° (+75° / -55°)
Max. lifting capacity:
230 kg / 450 kg

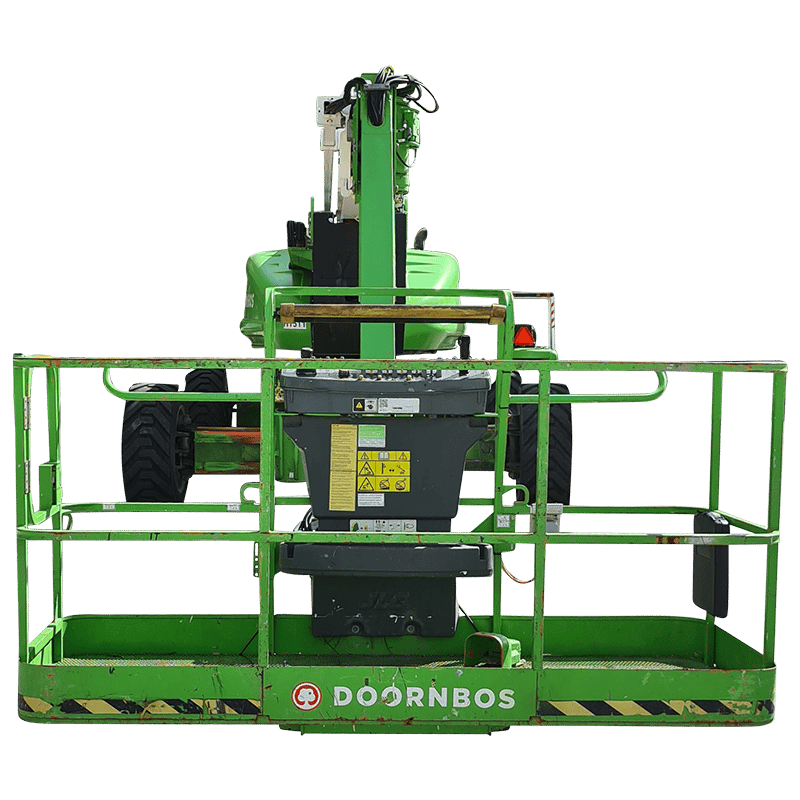

Platform Dimensions (LxW):
2.44 x 0.91 m
Platform Rotation:
Yes
Basket leveling:
Yes
Max horizontal force:
about 40 kg
Max wind speed:
Wind force 6
Setup Width:
3,81 m
Transport dimensions (LxWxH):
11.46 x 2.49 x 3.05 m
Total weight:
21,000 kg
Max skew:
5°
Power/Fuel:
Diesel
Four-wheel drive:
Yes
Four-wheel steering:
No
Tyres:
Foam-filled
Ride height from work platform:
40,30 m
Power connection in platform basket:
Yes
More specificationsLess specifications
