43m GENIE articulating boom lift diesel rental?

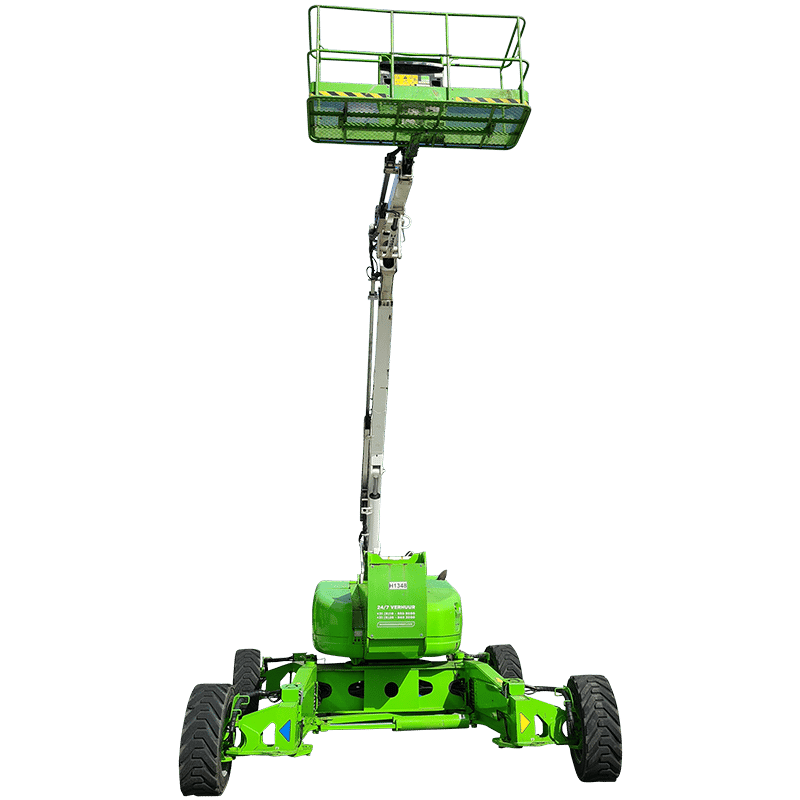

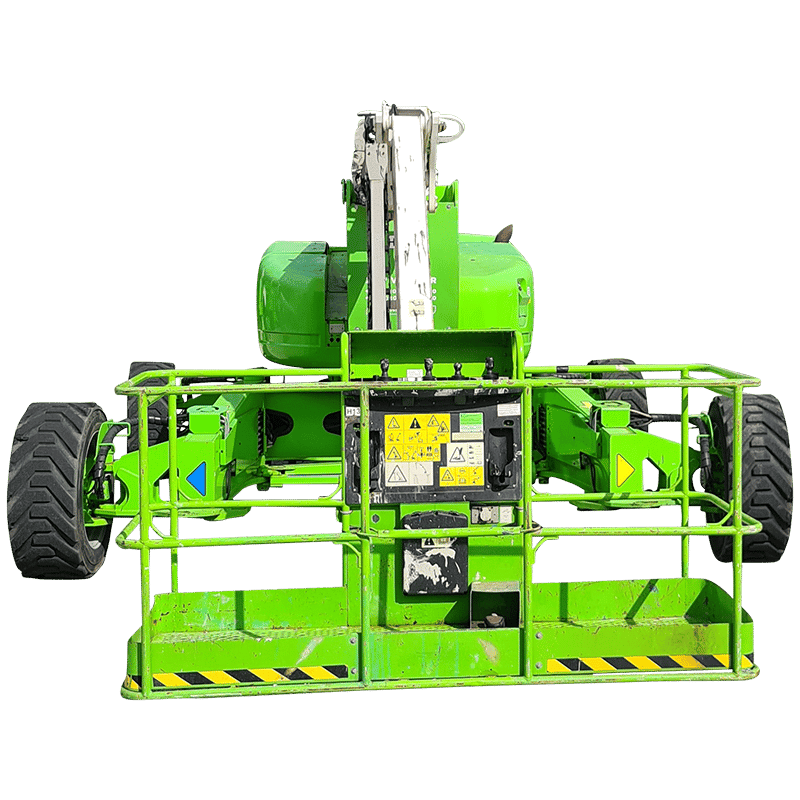

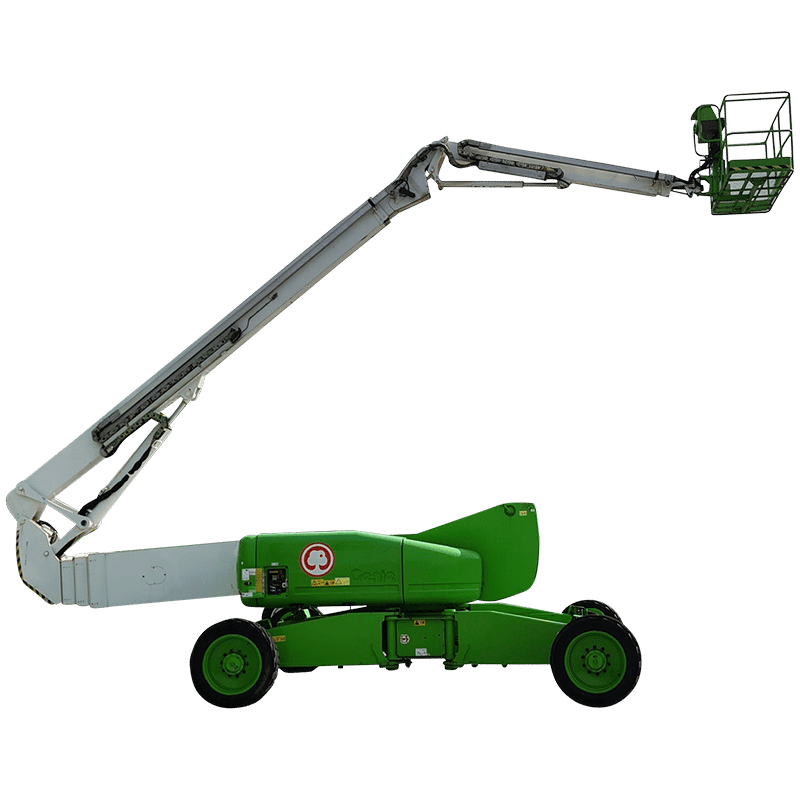

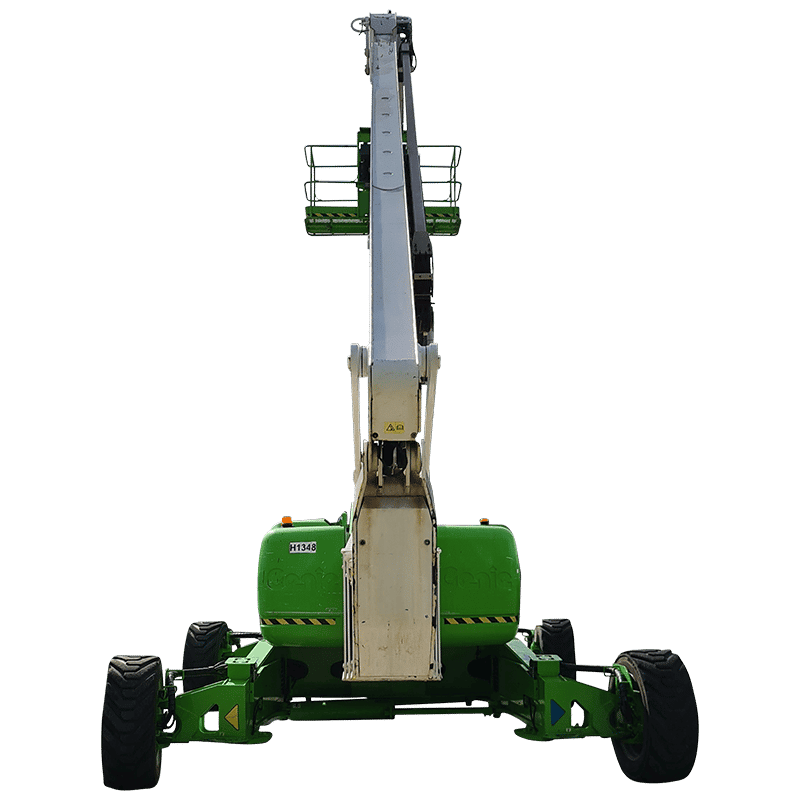

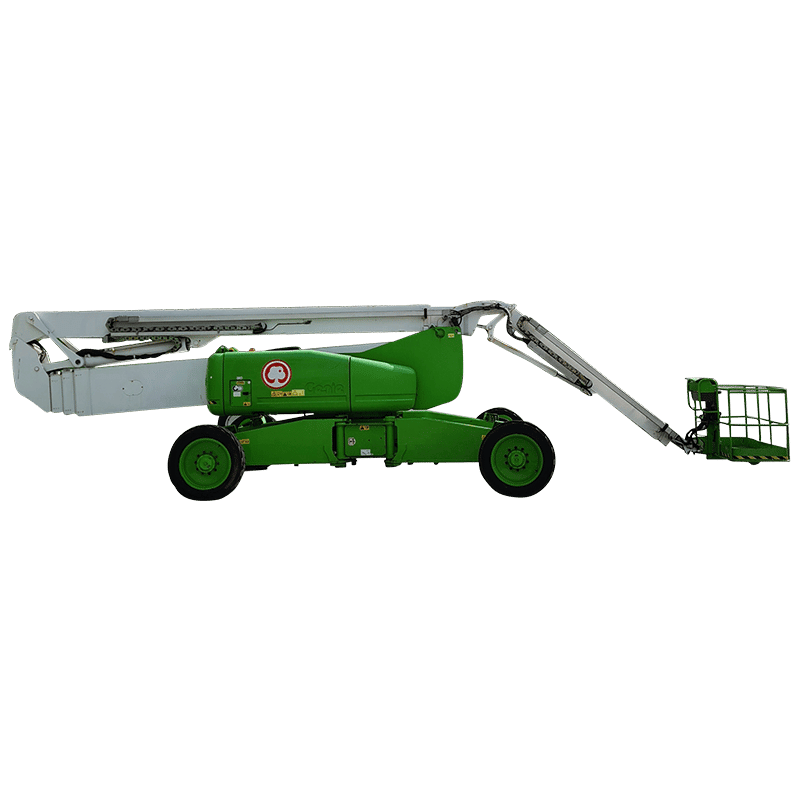

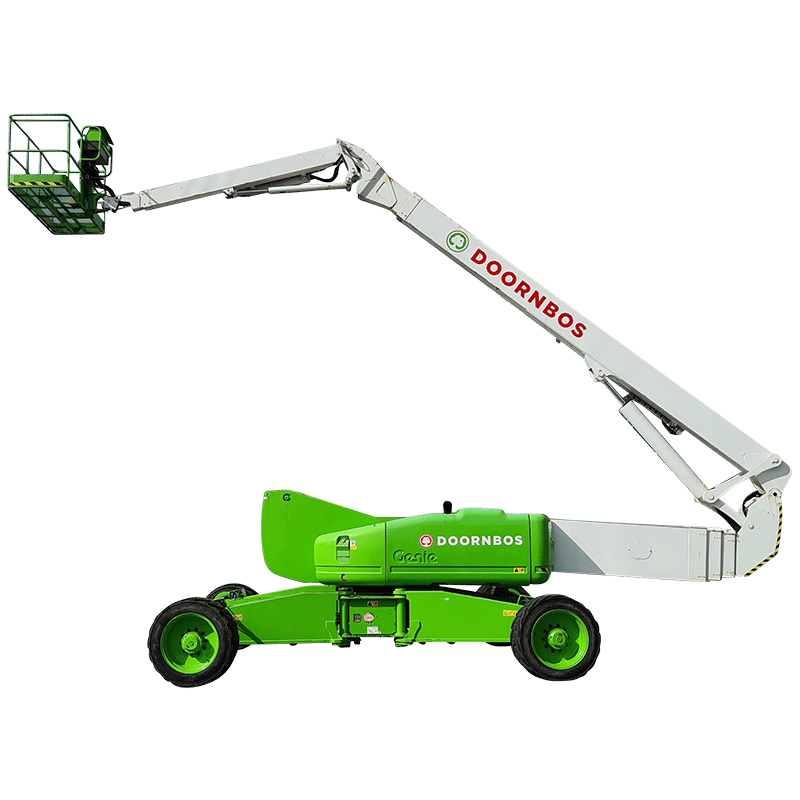

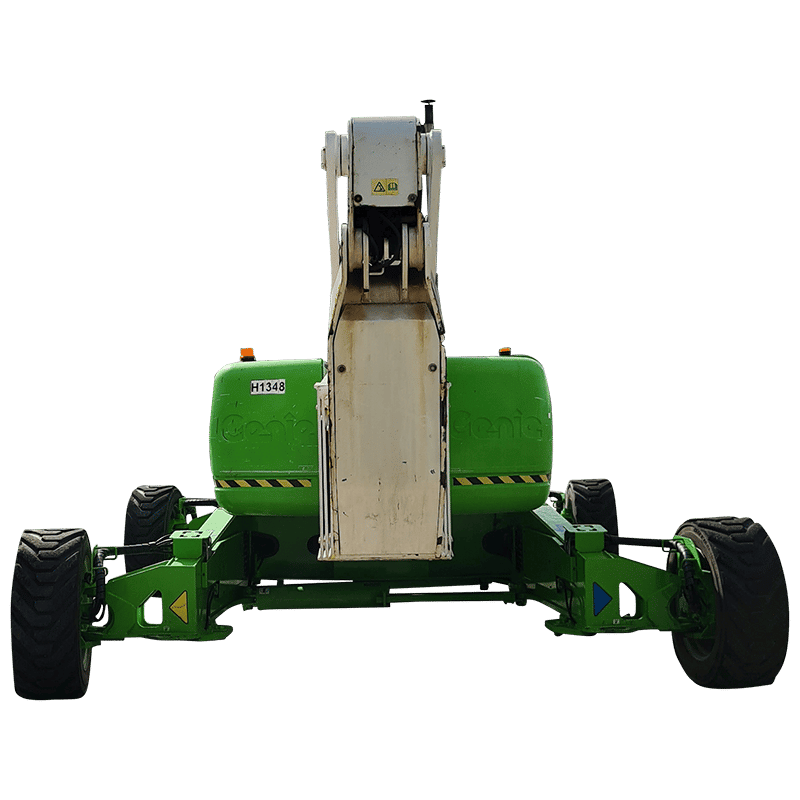

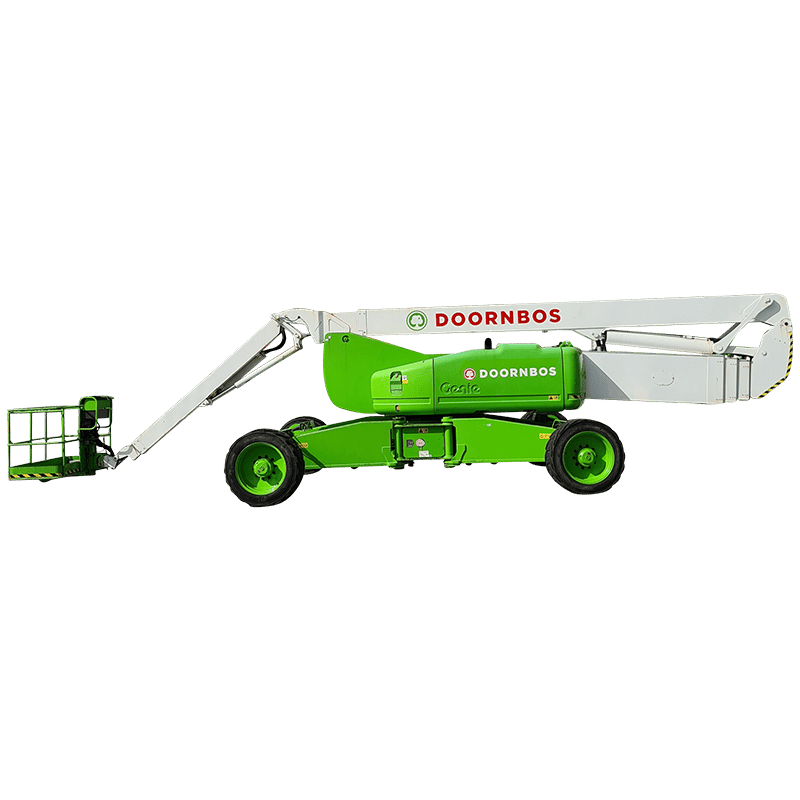

43m GENIE articulating boom lift diesel rental? The GENIE ZX 135/70 is a diesel-powered articulated boom lift with a working height of 43.15 m. With an articulated boom lift, you are very maneuverable because of the up-and-over-clearance, especially to overcome difficult obstacles. The platform of this machine can carry a maximum load of 272 kg. This includes operator and tools, for example. The 4×4 drive makes it possible to perform jobs on rough terrain as well.
- GENIE is a well-known and reliable aerial platform brand
- Simple operation
- We recommend the use of fall protection when working with our articulated boom lifts. A safety harness is available for rent from us
- We can also arrange for driving plates, if needed for your operations
If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.
Specifications
Working Height:
43,15 m
Floor height:
41,15 m

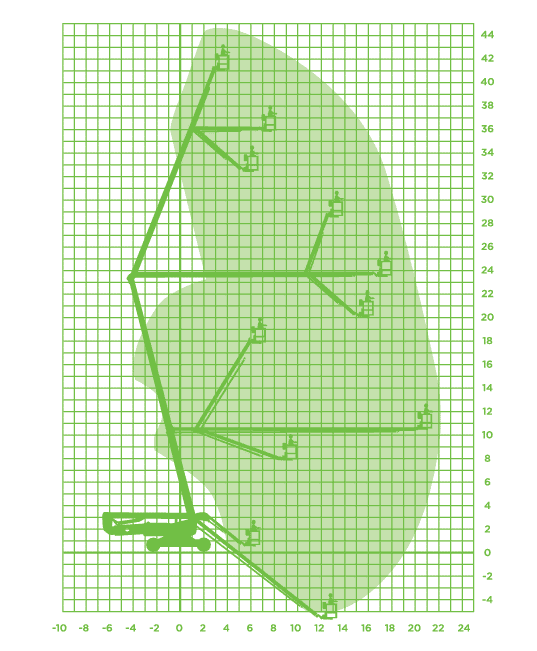

Horizontal working range:
21,26 m
Knee height
23,01 m
Jib Length:
6,10 m
Working range Jib horizontal:
N/A.
Working range Jib vertical:
110˚
Max. lifting capacity:
272 kg
Platform Dimensions (LxW):
2.44 x 0.91 m
Platform Rotation:
Yes
Platform Levelling:
Yes
Max horizontal force:
about 40 kg
Max wind speed:
Wind force 6
Setup/work width:
5,03 m
Transport dimensions: (LxWxH):
12.93 x 2.49 x 3.07 m
Total weight:
20,502 kg
Max skew:
4,5°
Power/Fuel:
Diesel
Four-wheel drive:
Yes
Four-wheel steering:
No
Tyres:
Foam-filled
Row height from work basket:
43,15 m
Power connection in work basket:
Yes
More specificationsLess specifications
