10m AICHI scissor lift electric rental?

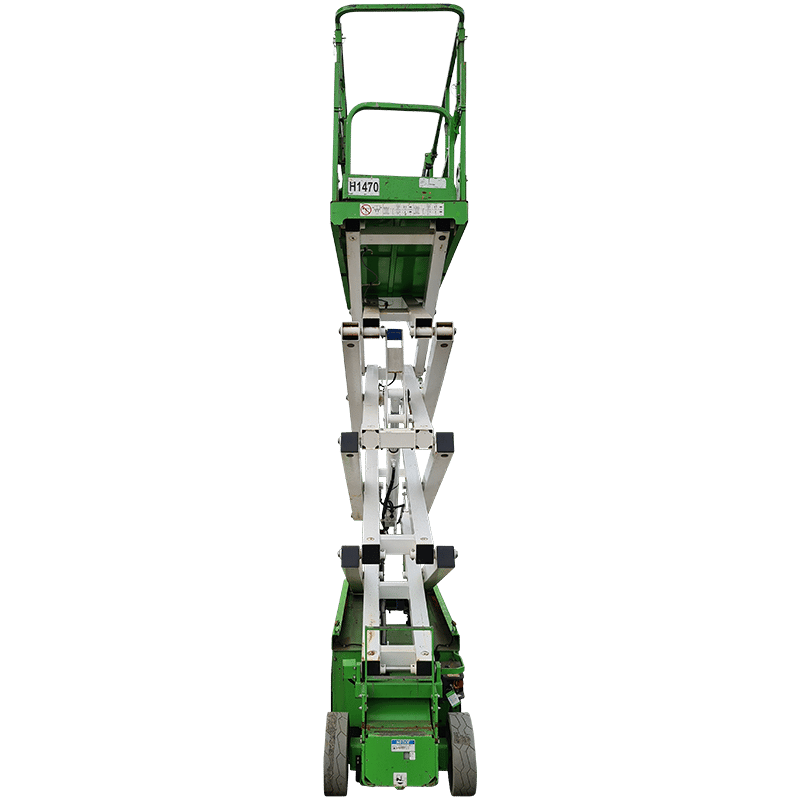

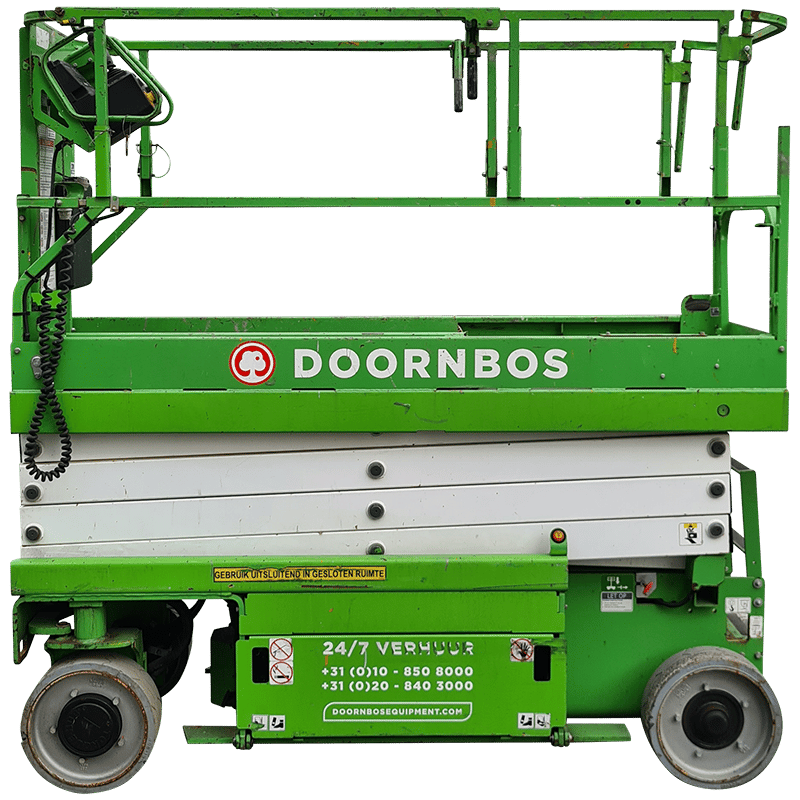

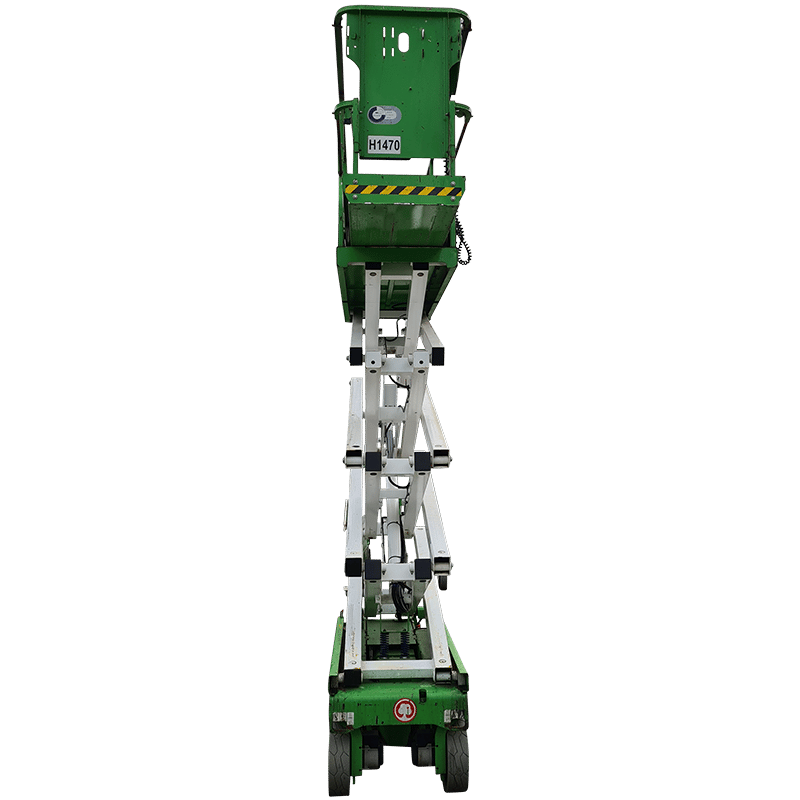

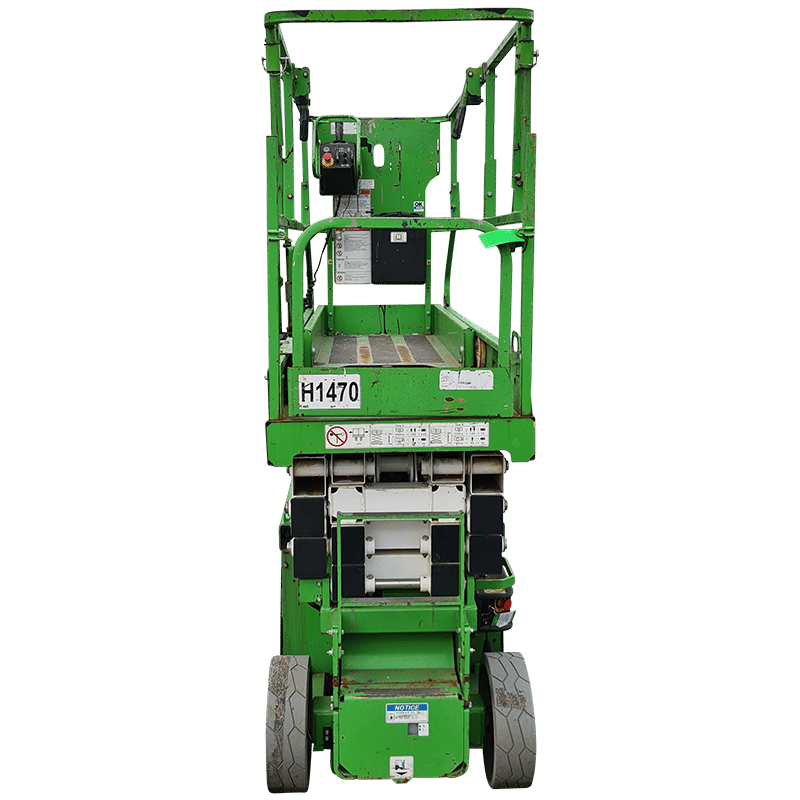

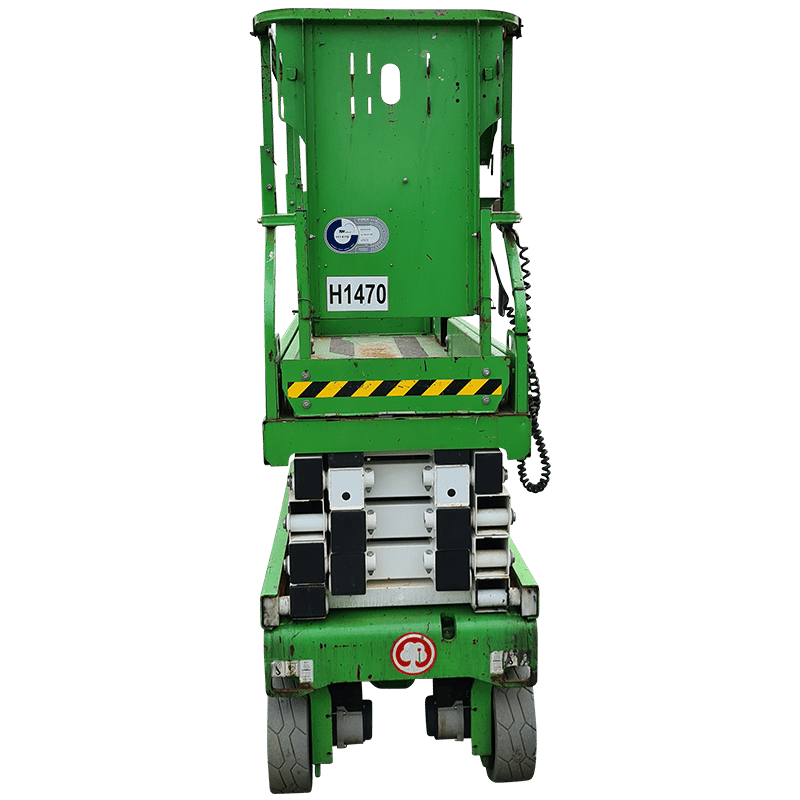

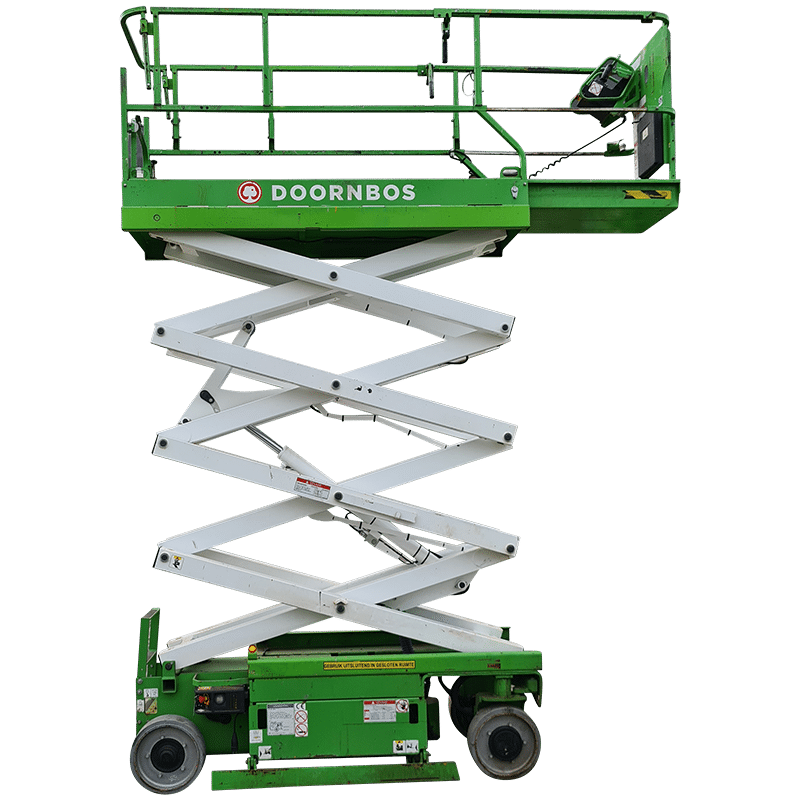

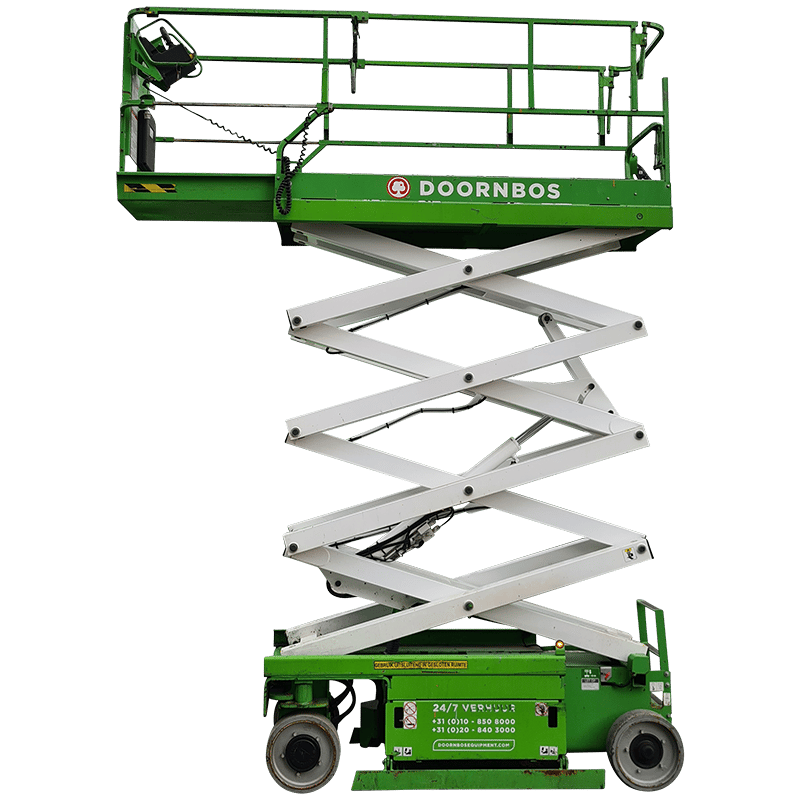

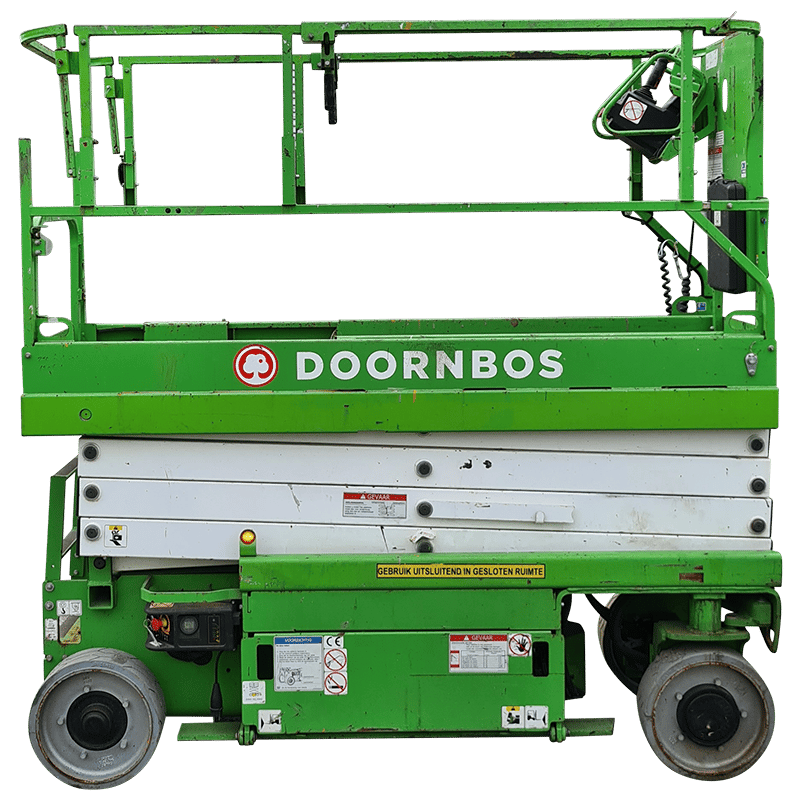

9.77 m Aichi scissor lift electric rental? The Aichi SV 08 is an electric powered scissor lift with a working height of 9.77 m. A scissor lift goes straight up, making it ideal for placement right next to a building or object. The platform of this machine can carry a maximum load of 230 kg. This includes operator and tools, for example. To avoid streaks and marks on floors, this scissor lift is equipped with non-marking tyres. Of course, you also want the most durable option when renting an aerial work platform. The Aichi SV 08 has a battery pack that must be charged by mains power.

  • Aichi is a well-known and reliable AWP brand
  • Simple operation
  • Non marking tires
  • Battery pack on 230V mains power
  • This scissor lift is suitable for indoor work
  • When using a scissor lift, the use of fall protection is not mandatory
  • We can arrange driving plates, if needed for your operations

If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.

Specifications
Downloads
Trainings

Specifications

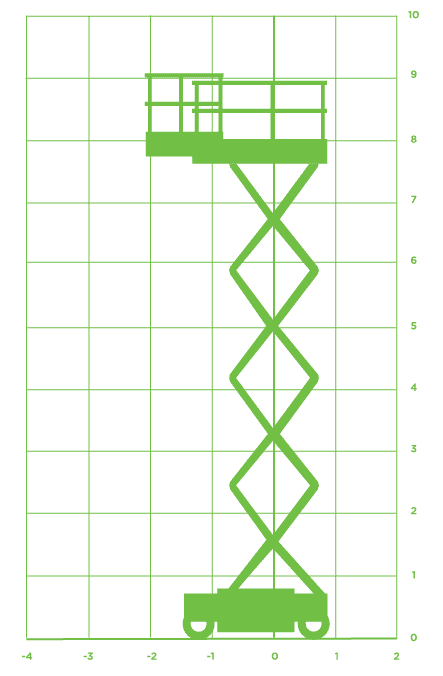

Working Height:

9,77 m

Platform height:

7,77 m

Platform dimensions in (L x W):

2.21 x 0.76 m

Platform dimensions out (L x W):

3.21 x 0.76 m

Platform extension:

1,00 m

Max. lifting capacity:

230 kg

Max. lifting capacity extension platform:

120 kg

Max. horizontal force outside:

N/A.

Max. horizontal force:

about 40 kg

Max wind speed:

Indoor use only

Transport dimensions (LxWxH):

2.30 x 0.80 x2.25 m

Transport height incl. railing:

2,25 m

Transport height excl. railing:

1,85 m

Total weight:

2,140 kg

Max skew:

1,5°

Power/Fuel:

Electric

Four-wheel drive:

No

Four-wheel steering:

No

Wheelbase (c.t.c.):

1,81 m

Hydraulic Stabilising:

N/A.

Manual stabilising:

N/A.

Tyres:

Solid

Non-marking:

Yes

Power connection on work platform:

No

More specificationsLess specifications
