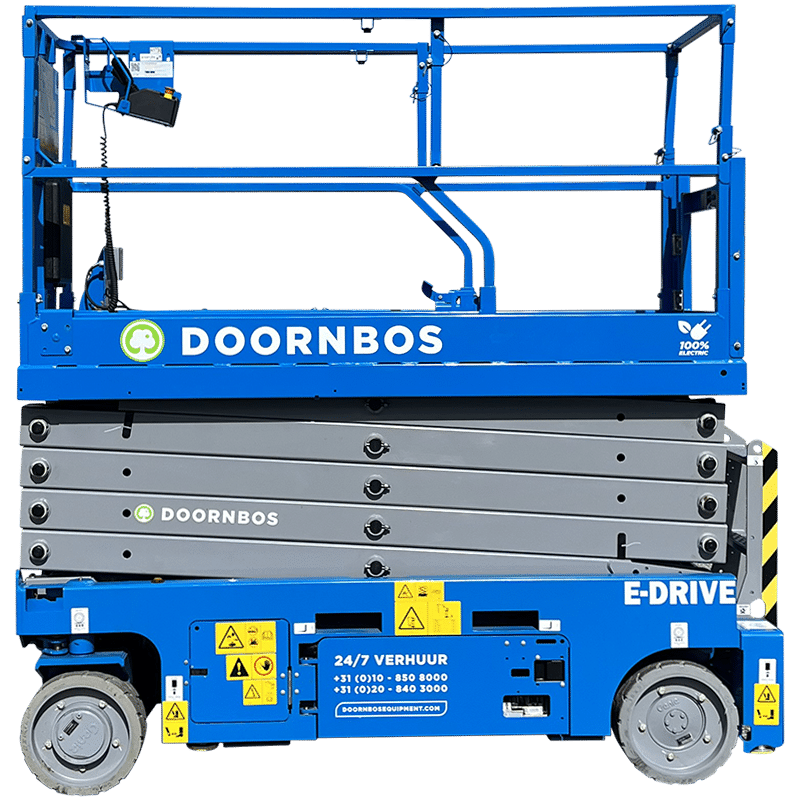

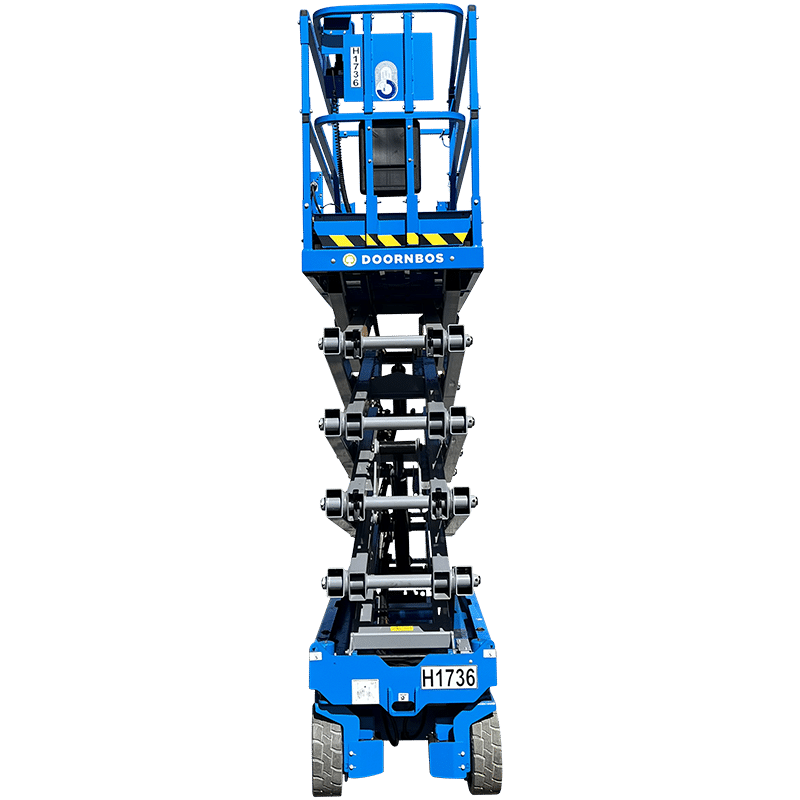

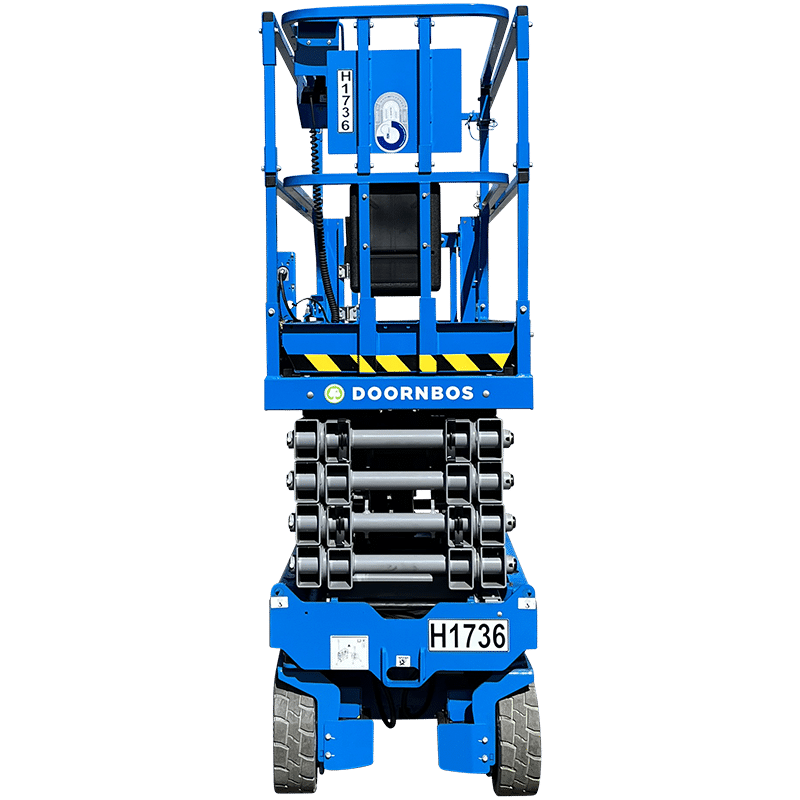

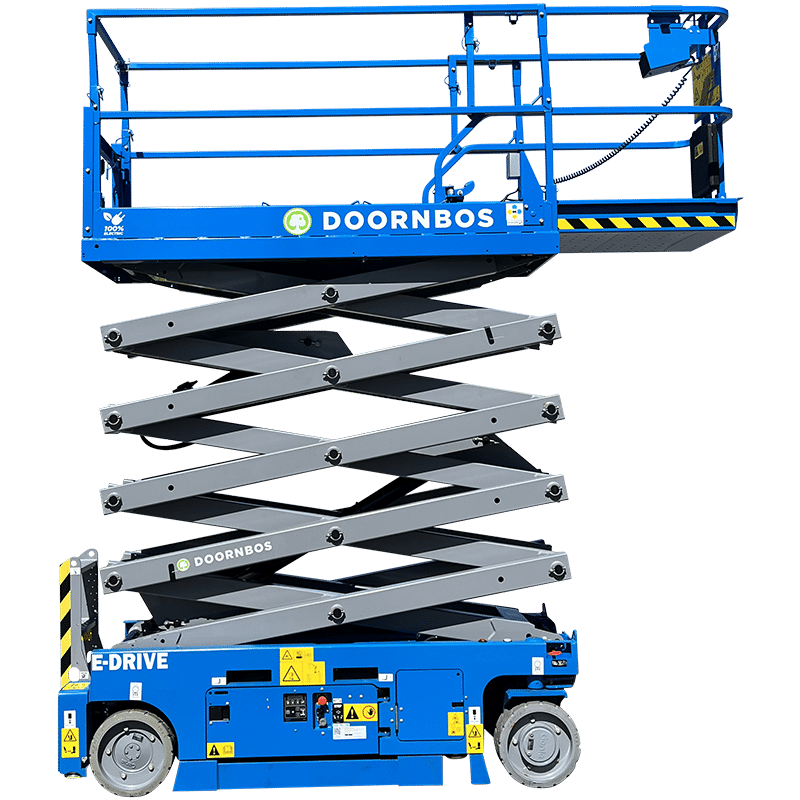

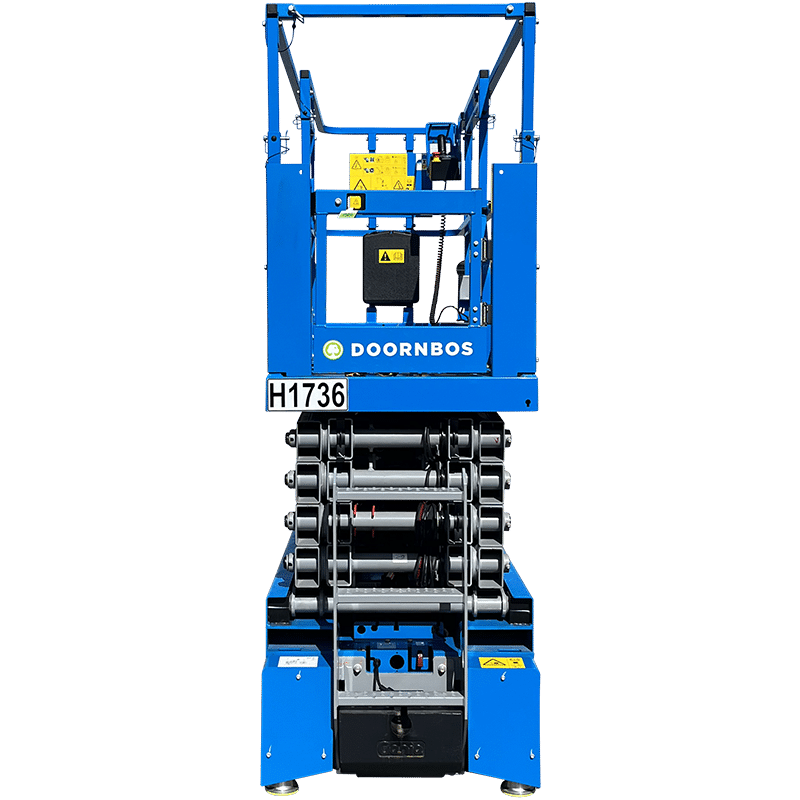

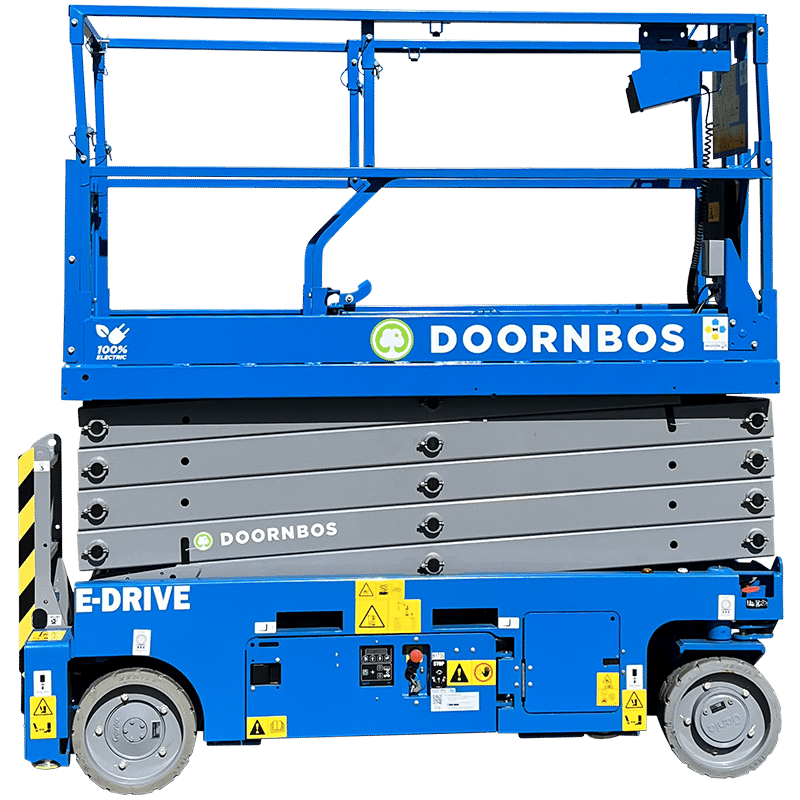

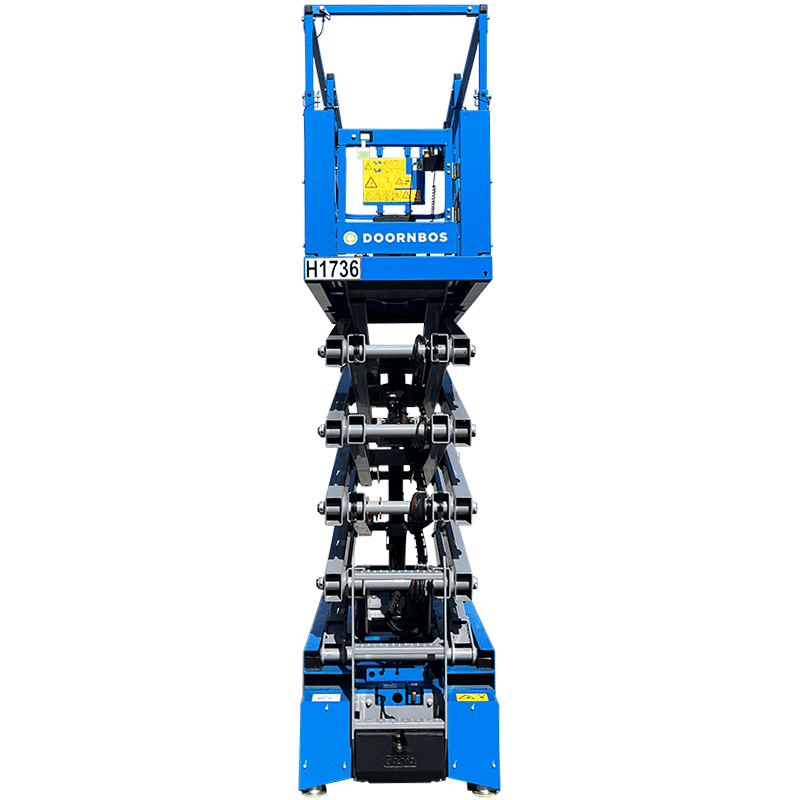

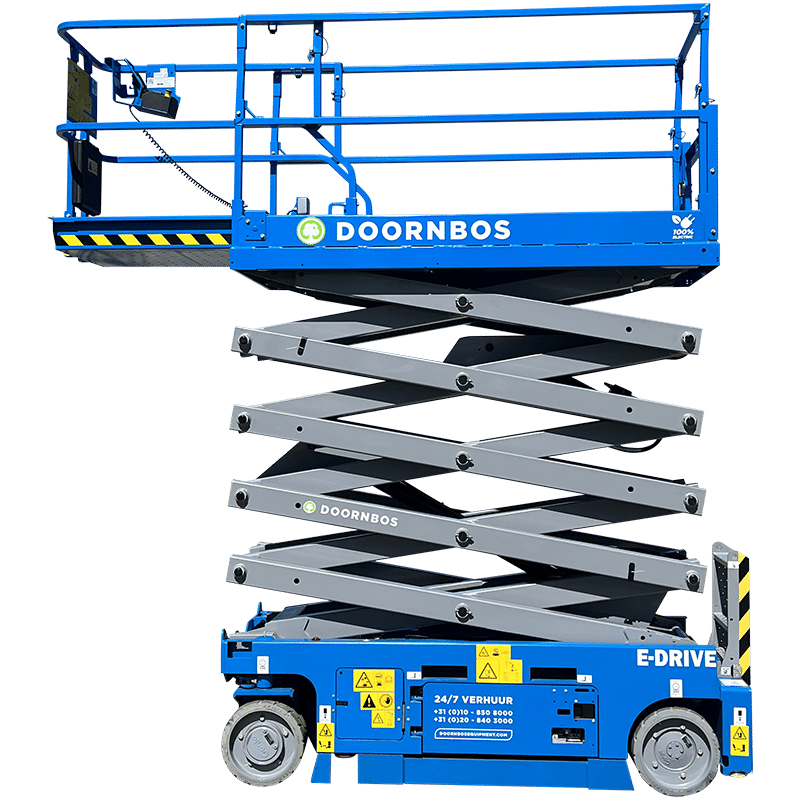

12m GENIE scissor lift diesel rental? The Genie GS-3232 E-Drive slab scissor lift is an electric model ideal for operation in emission and sound-sensitive indoor and outdoor jobsites where space is limited. The standard, state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs, especially when a significant amount of driving is required.

  • Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
  • Quiet, zero-emission electric operation
  • Easy to maneuver in tight spaces
  • Automatic leveling hydraulic outriggers level machine on slopes up to 5˚
  • 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
  • Large platform workspace with 36 in (0.91 m)  roll-out platform extension
  • Swing out components trays for easy access
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use

If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.

Specifications
Downloads
Trainings

Specifications

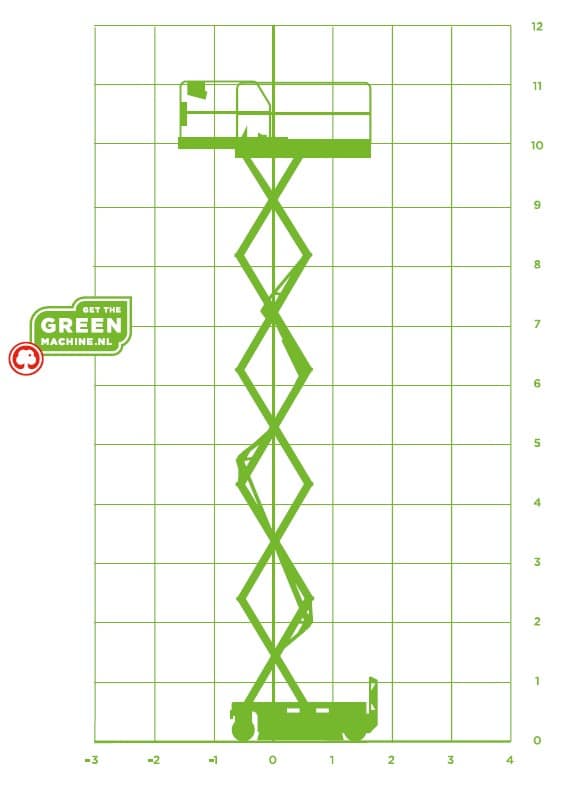

Working Height (Outdoor/Indoor)

7,49 m / 11,78 m

Platform height (Outdoor/Indoor)

5,49 m / 9,78 m

Platform dimensions in (L x W)

2,26 x 0,84 m

Platform dimensions out (L x W)

3,18 x 0,84 m

Platform extension

0,91 m

Max. lifting capacity

227 kg

Max. lifting capacity extension platform

113 kg

Max horizontal force:

about 40 kg

Max wind speed:

Wind force 6

Transport dimensions (LxWxH)

2,44 x 0,82 x 2,44 m

Transport height incl. railing

2,44 m

Transport height excl. railing

2,03 m

Total weight

7,132 kg

Max skew

Power/Fuel

Electric

Four-wheel drive

No

Four-wheel steered

No

Wheelbase (c.t.c..)

1,85 m

Manual Stabilising

No

Hydraulic Stabilising

No

Tyres

Foam-filling

Non-marking

Yes

Power connection on work platform

No
