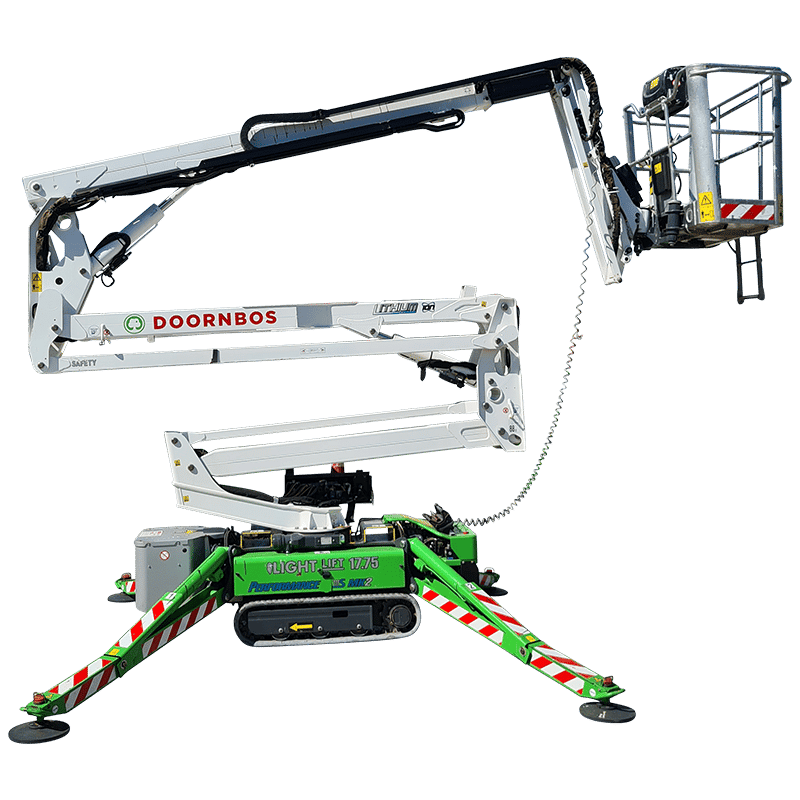

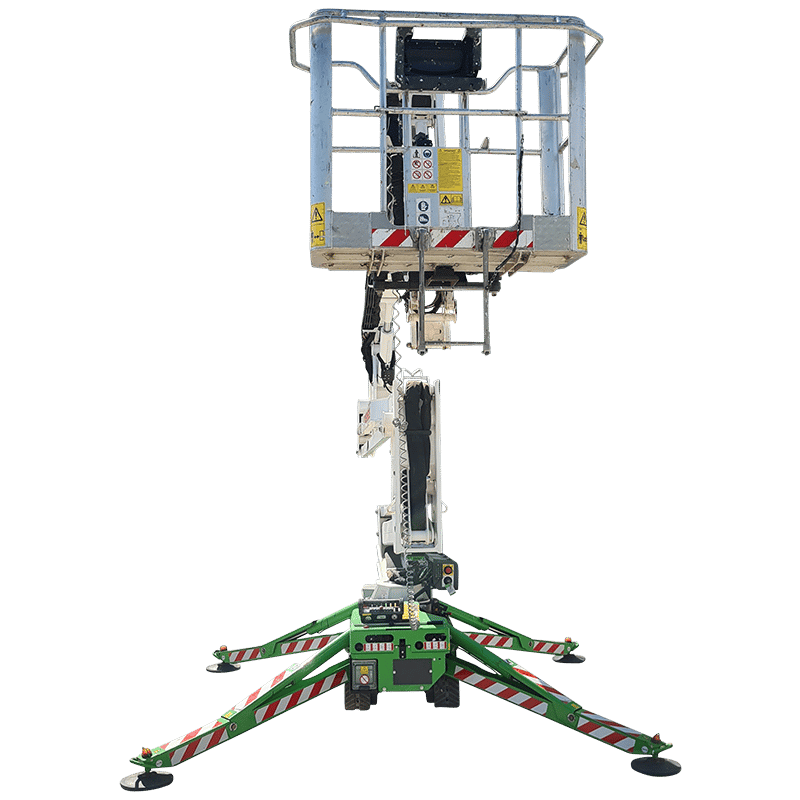

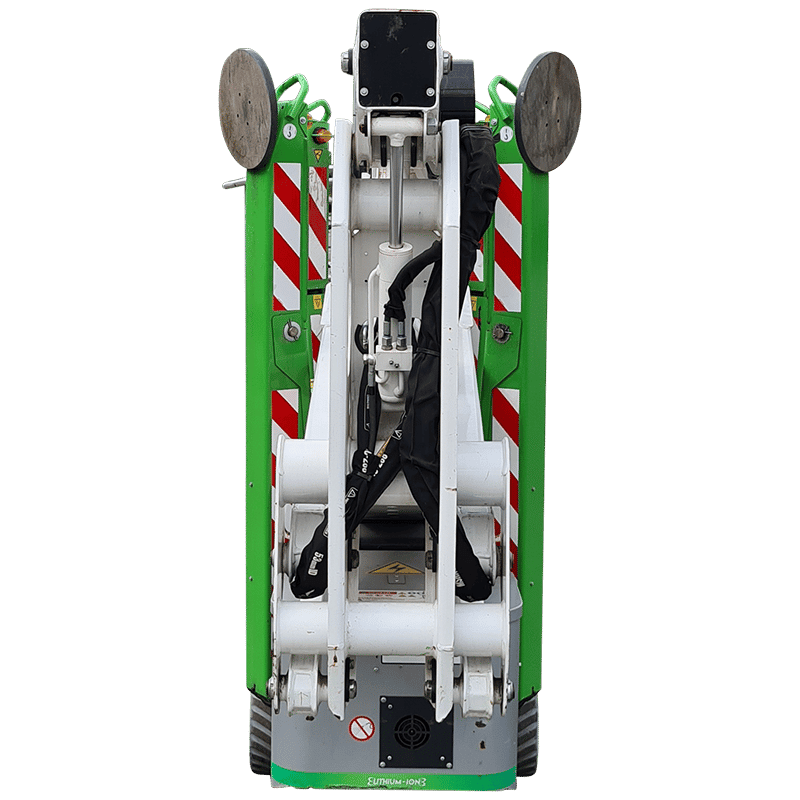

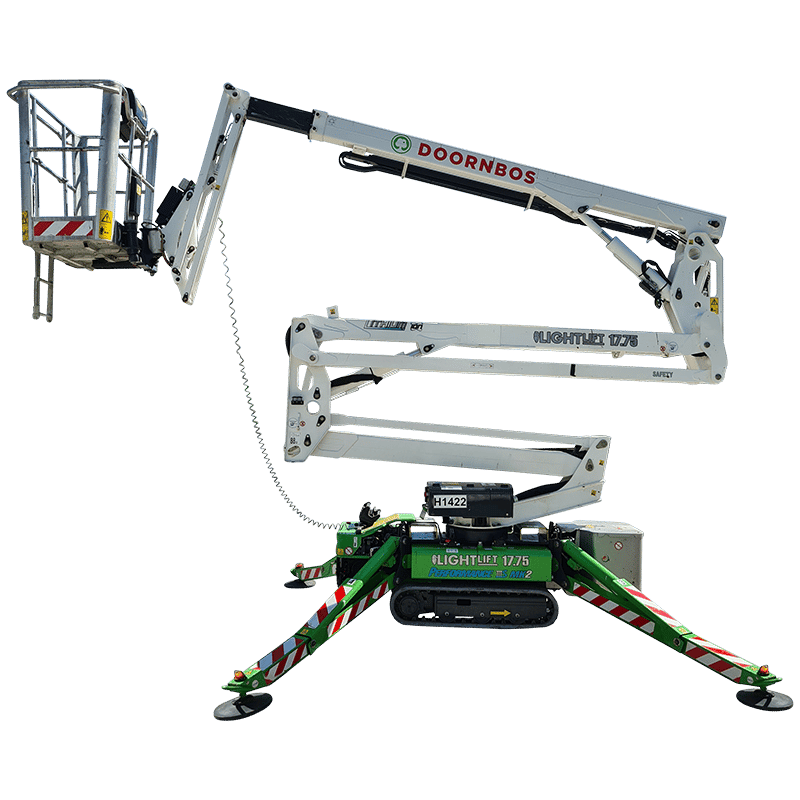

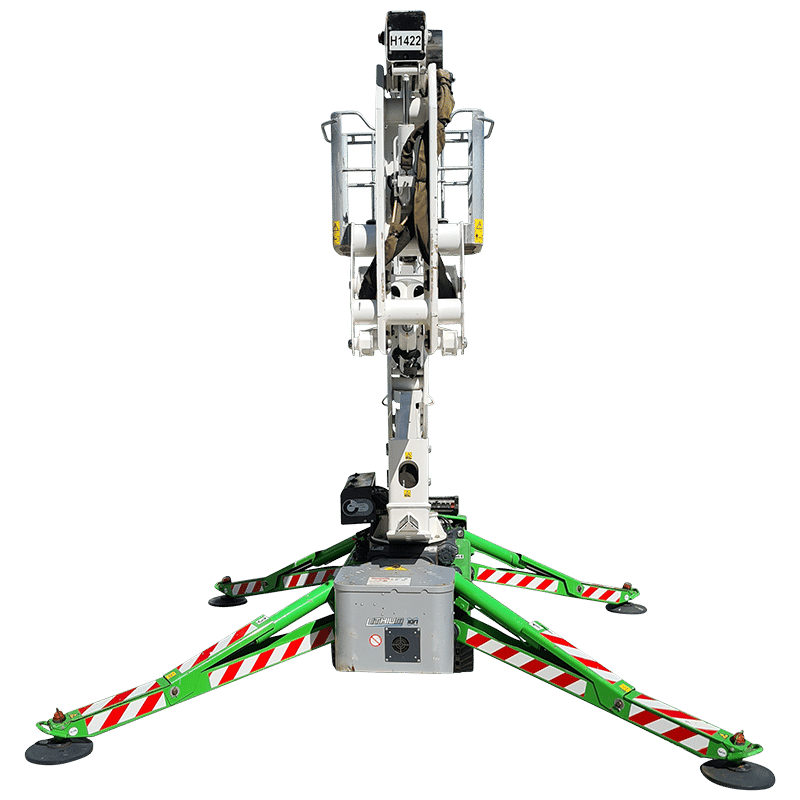

17.06 m Hinowa spider boom lift electric or diesel rental? The Hinowa Lightlift 17.75 is an electric or diesel powered spider boom lift with a working height of 17.06 m. A spider boom lift is light and compact, making it ideal for work in places where space is limited. The machine is equipped with tracks. The platform can carry a maximum load of 230 kg. This includes operator and tools, for example. Of course, you also want the most durable option when renting an aerial work platform. The Hinowa Lightlift 17.75 has a diesel version and a version with a battery pack that must be charged by mains power.

  • Hinowa is a well-known and reliable aerial work platform brand
  • Simple operation
  • Ideal for workplaces with limited space
  • Battery pack on 230V mains power (Diesel version also available)
  • We recommend the use of fall protection when working with our spider work platforms. A safety harness is available for rent from us
  • We can also arrange for driving plates, if needed for your operations

If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.

Read moreRead less
Specifications
Downloads
Trainings

Specifications

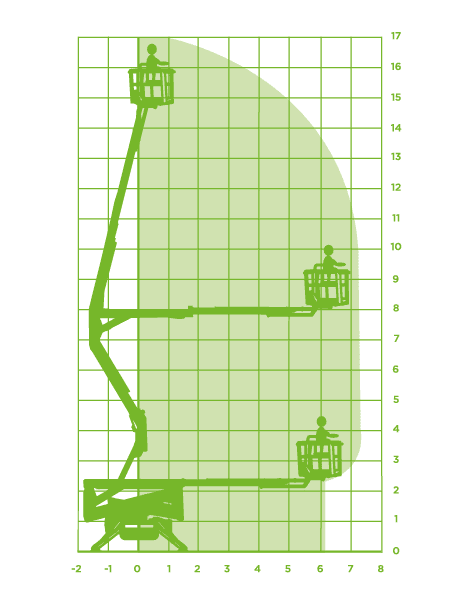

Working Height:

17,06 m

Platform Height:

15,06 m

Horizontal range:

7,50 m

Max. Up and Over Clearance:

7,60 m

Max. lifting capacity

230 kg

Platform Dimensions (LxW):

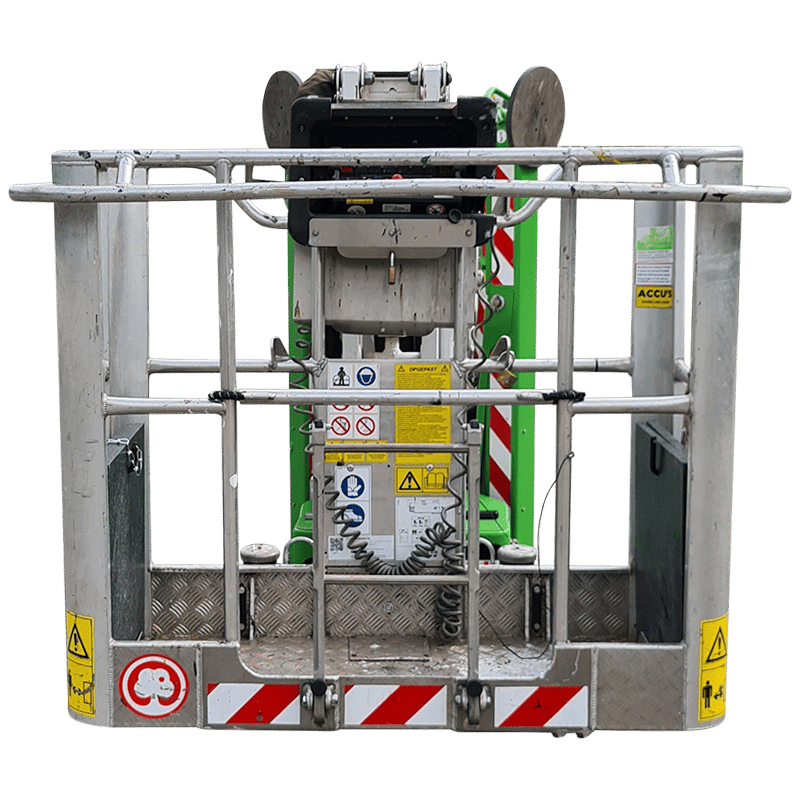

1.33 x 0.69 m

Platform Rotation:

Yes

Platform Levelling:

Yes

Max. horizontal force:

about 40 kg

Max wind speed:

Wind force 6

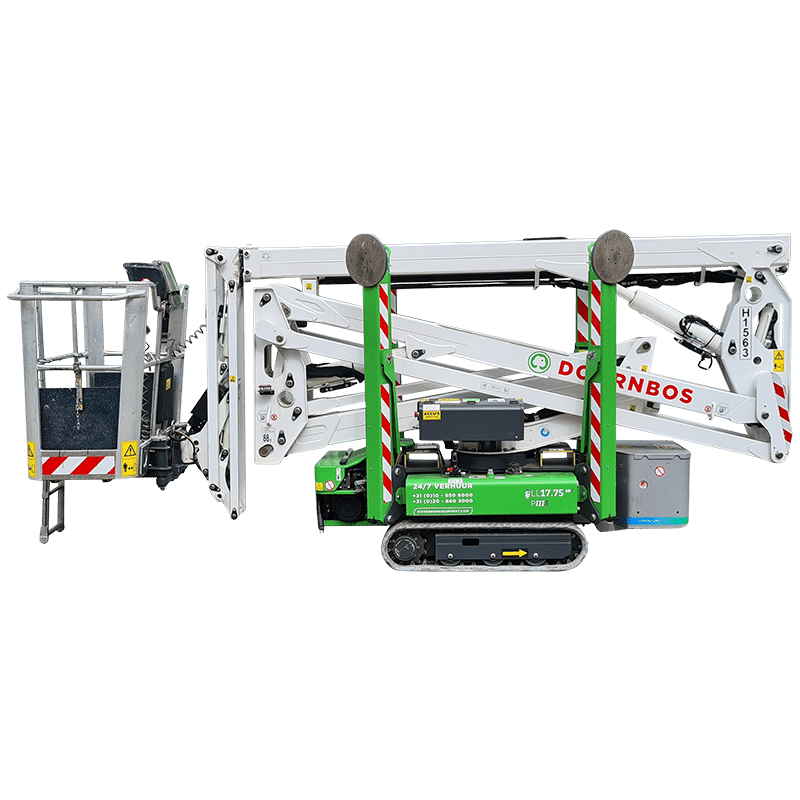

Transport dimensions (LxWxH):

4.53 x 0.80 x 2.00 m

Total weight:

2,300 kg

Max. Upper Slant:

to 13°= approx. 28.7%

Outrigger Footprint Standard (c.t.c):

2.90 x 2.90 m

Power/Fuel:

Electric / Diesel

Crawler Driven:

Yes

Crawler Steered:

Yes

Non-marking:

Yes

Power connection from work platform:

Yes (no generator of its own)

More specificationsLess specifications
