23m TEUPEN leo spider boom lift diesel rental?

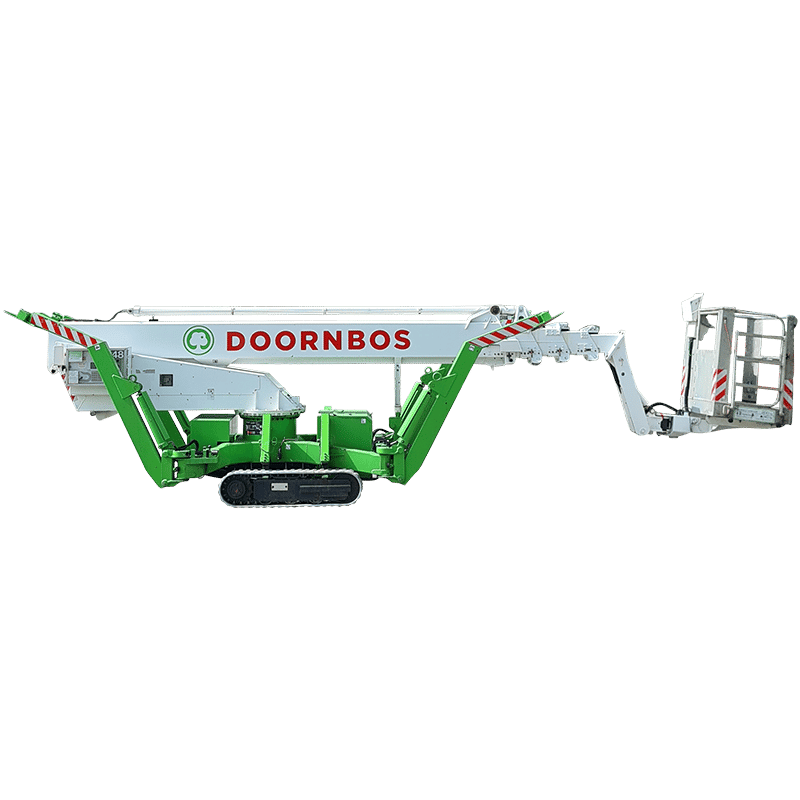

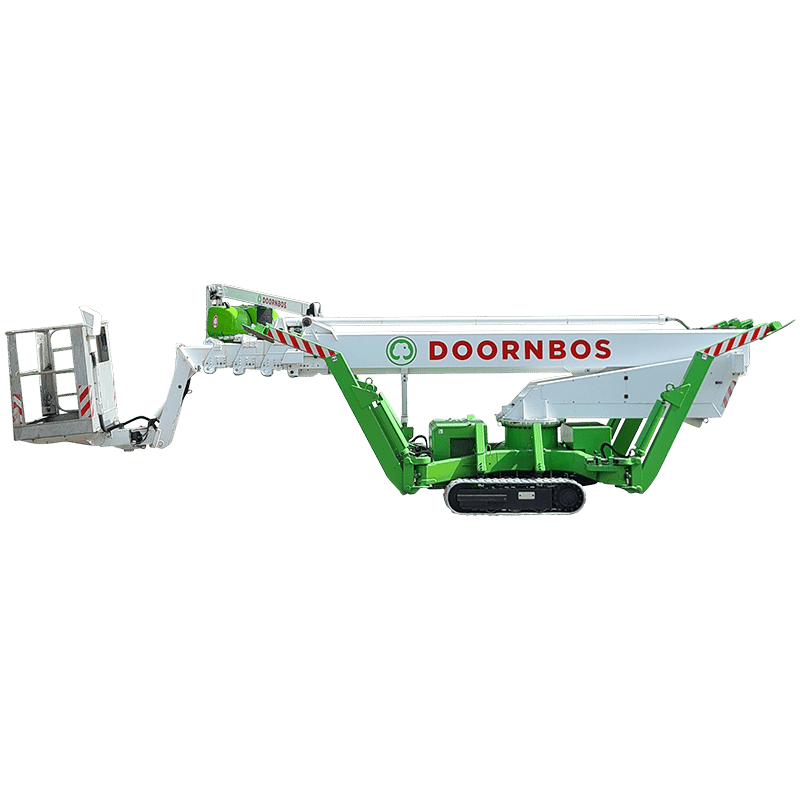

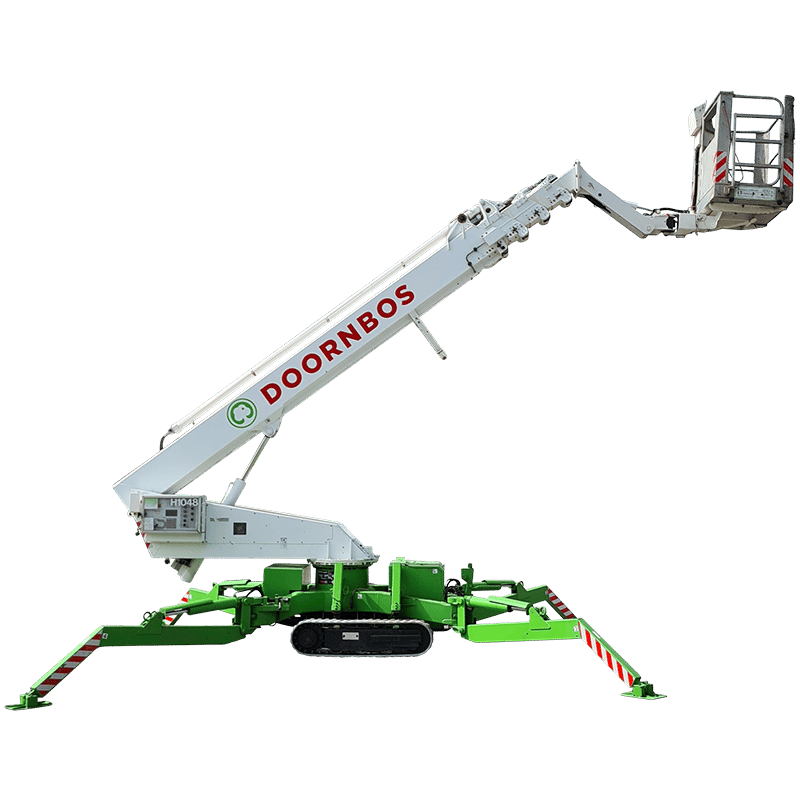

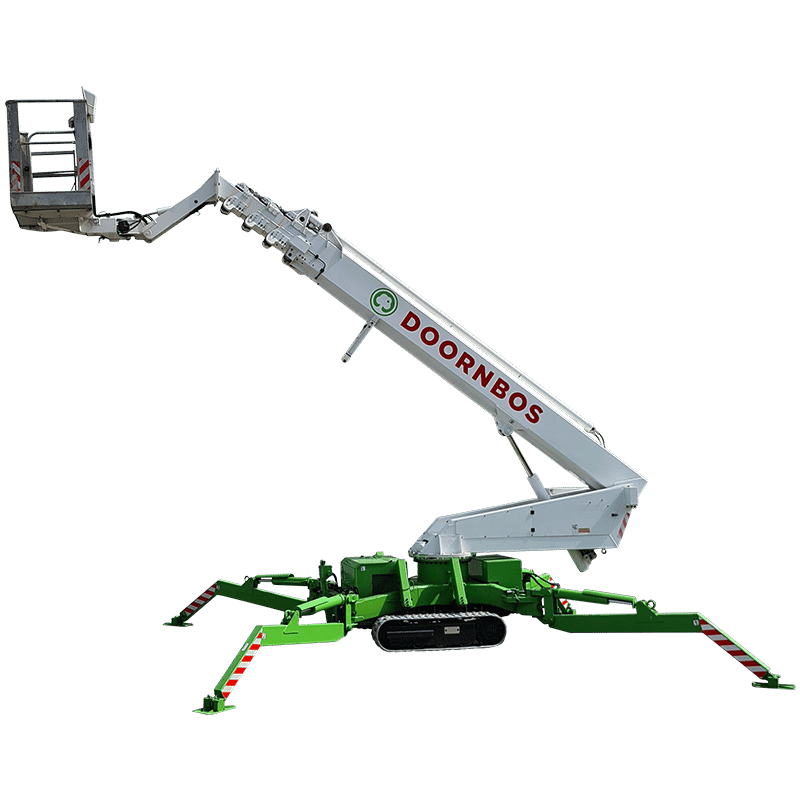

23.00 m Teupen spider boom lift diesel rental? The Teupen Leo 23 GT is a diesel-powered spider boom lift with a working height of 23.00 m. A spider boom lift is light and compact, making it ideal for work in places where space is limited. The platform of this machine can carry a maximum load of 200 kg. This includes operator and tools, for example.

  • Teupen is a well-known and reliable aerial platform brand
  • Ideal for workplaces with limited space
  • We recommend the use of fall protection when working with our spider work platforms. A safety harness is available for rent from us
  • We can also arrange for driving plates, if needed for your operations

If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.



Working Height:

23,00 m

Floor height:

21,00 m

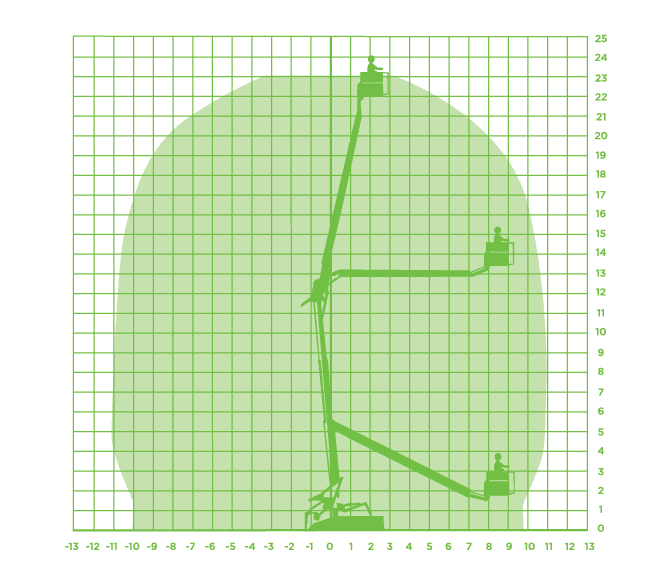

Max. horizontal range:

11,20 m

Max. Up and Over Clearance:

11,50 m

Max. lifting capacity

200 kg

Platform Dimensions (LxW):

1.42 x 0.70 m

Platform Rotation:


Platform Levelling:


Max. horizontal force:

about 40 kg

Max wind speed:

Wind force 6

Transport dimensions (LxWxH):

6.20 x 0.98 x 1.98 m

Point Load Transport Position

approx. 0.41 kg / cm2

Total weight:

3,050 kg

Soil pressure transportst.

Max. Upper Slant:

to 16.7°= approx. 30%

Outrigger Footprint Standard (c.t.c):

4.53 x 4.33 m

Outrigger Footprint Narrow (c.t.c):

5.98 x 2.58 m

Point Load p/Outrigger Plate

approx. 2,284 kg


Diesel / 230V

Crawler Driven:


Crawler Steered:




Power connection from work platform:

Yes (no generator of its own)

More specificationsLess specifications
