36m TEUPEN leo spider boom lift diesel rental?

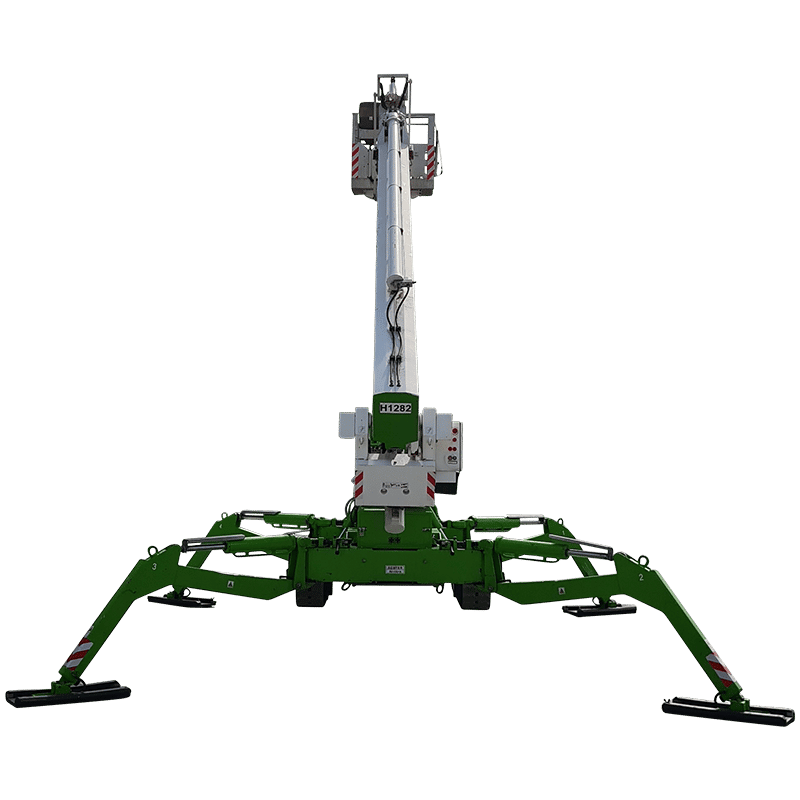

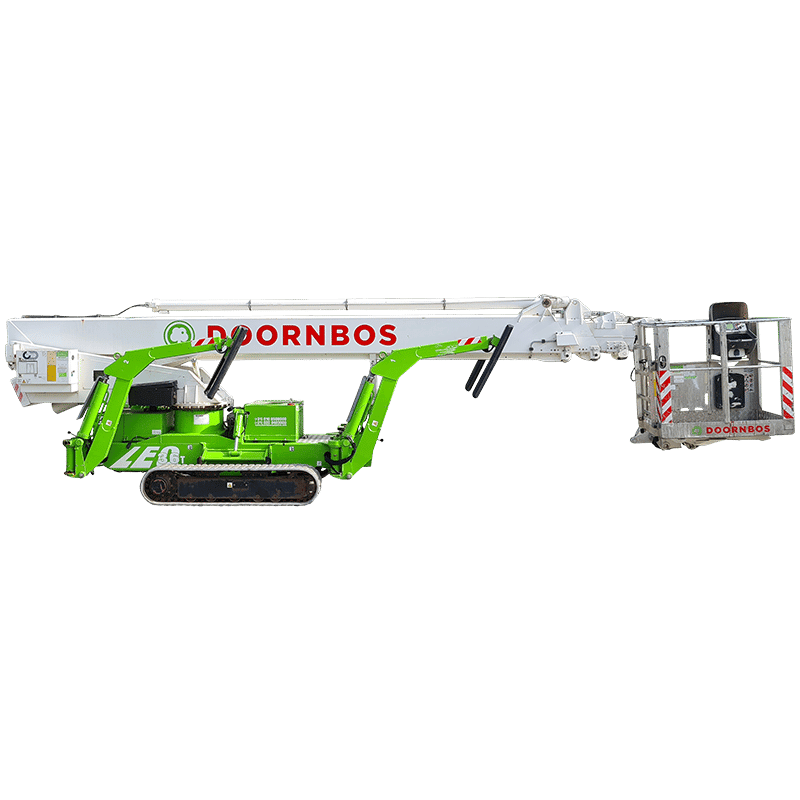

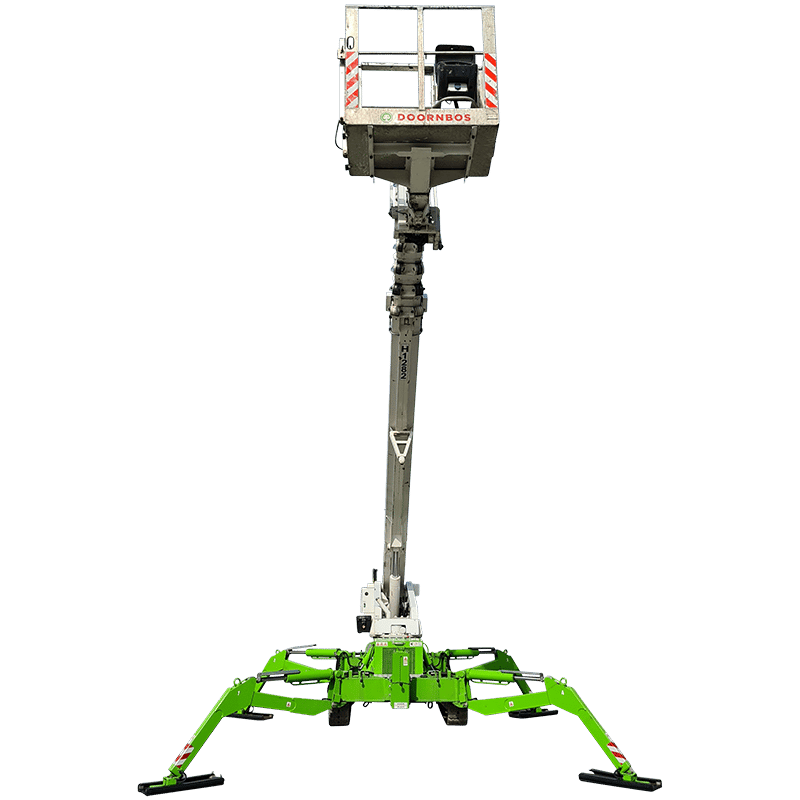

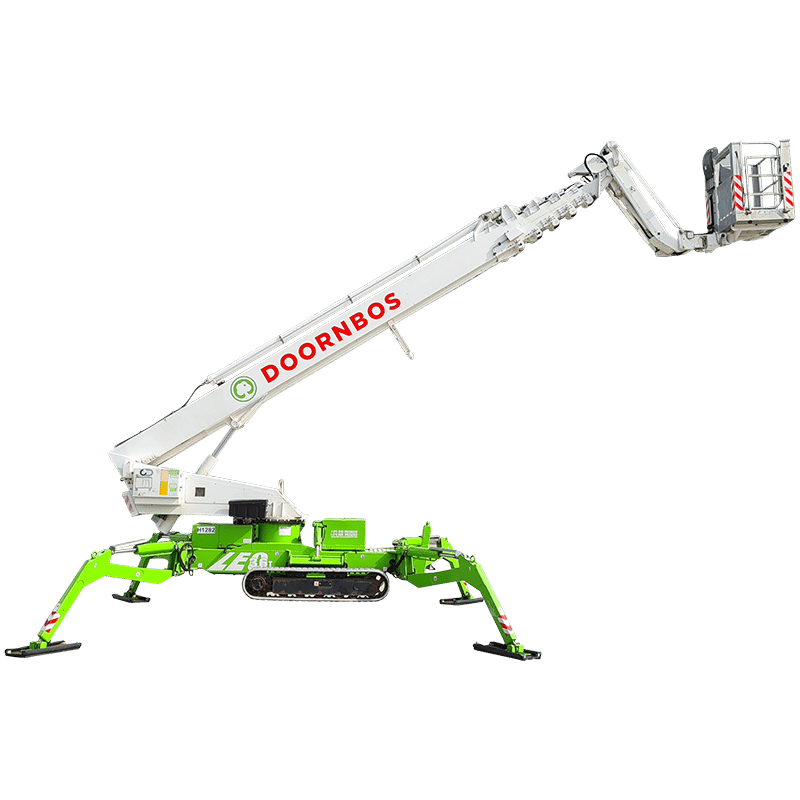

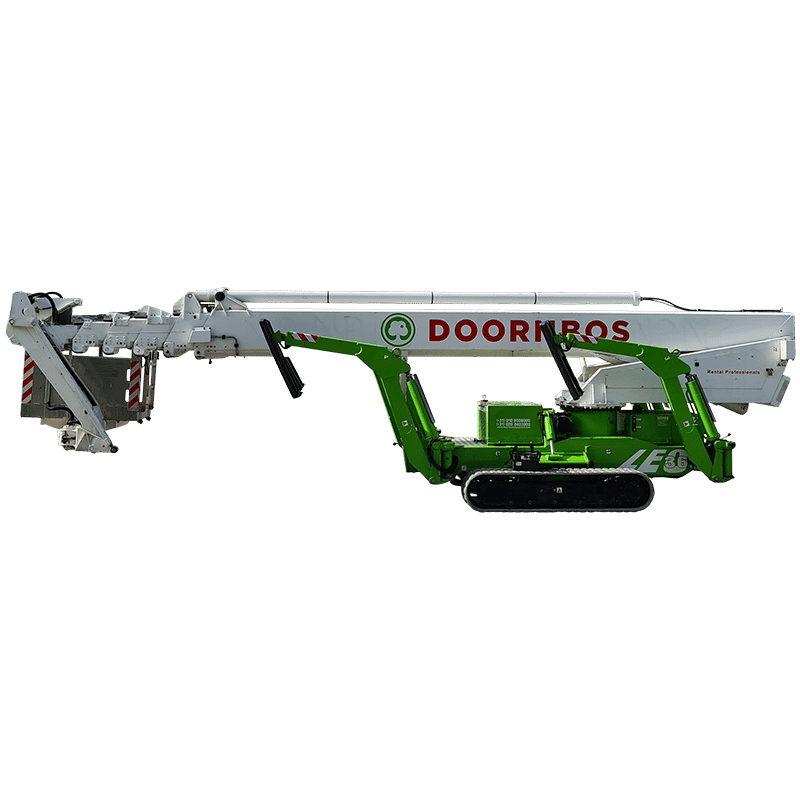

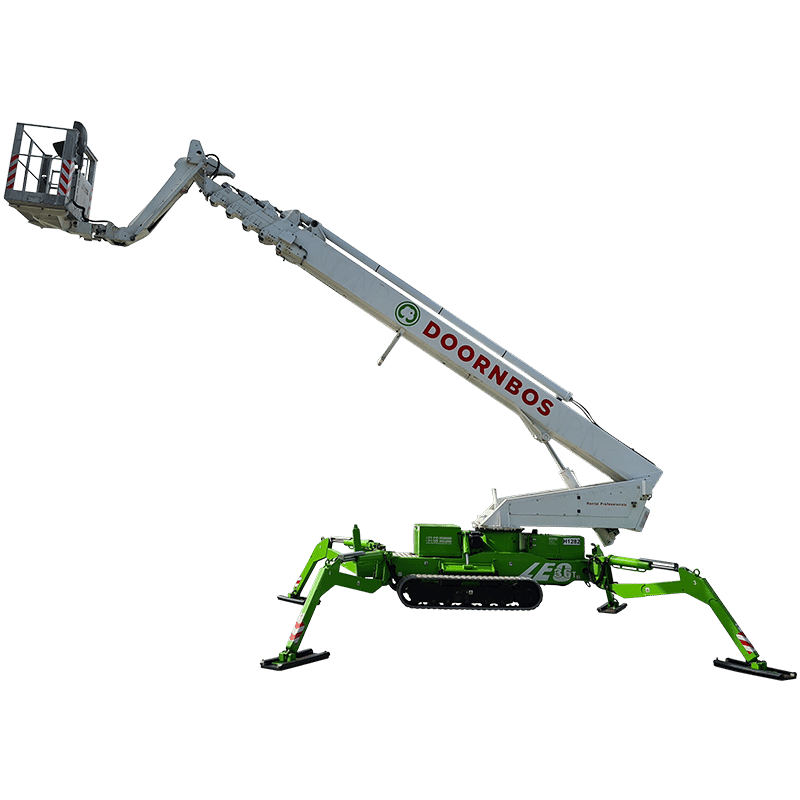

35.50 m Teupen spider boom lift diesel rental? The Teupen Leo 36 T is a diesel-powered spider boom lift with a working height of 35.50 m. A spider boom lift is light and compact, making it ideal for work in places where space is limited. The platform of this machine can carry a maximum load of 80kg / 200kg kg. This includes operator and tools, for example.
- Teupen is a well-known and reliable aerial platform brand
- Ideal for workplaces with limited space
- We recommend the use of fall protection when working with our spider work platforms. A safety harness is available for rent from us
- We can also arrange for driving plates, if needed for your operations
If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.
Specifications
Working Height:
35,50 m
Platform Height:
33,50 m

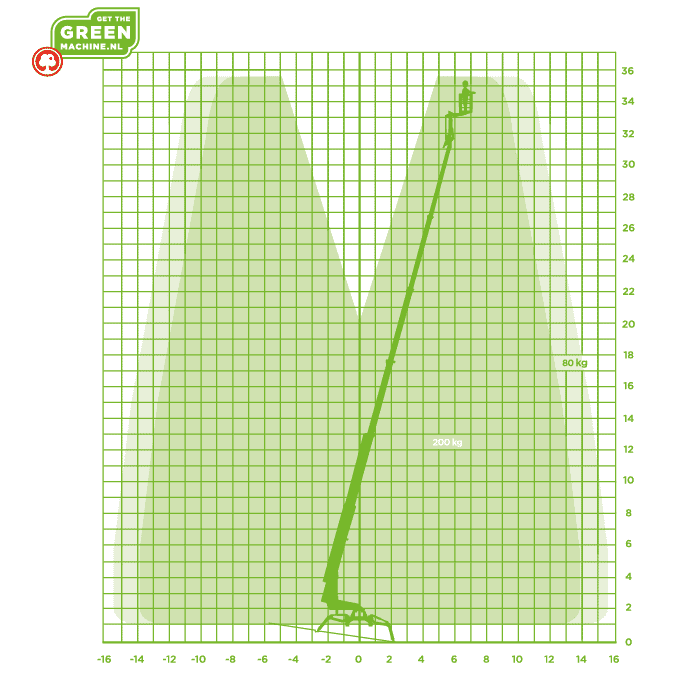

Max. horizontal range:
15.60 m / 13.90 m
Jib:
Yes
Working range Jib vertical:
180°
Max. lifting capacity
80 kg / 200 kg
Platform Dimensions (LxW):
1.20 x 0.80 m
Platform Rotation:
Yes
Platform Levelling:
Yes
Max horizontal force:
about 40 kg
Max wind speed:
Wind force 6
Transport dimensions (LxWxH):
8.18 x 1.58 x 1.98 m
Point Load Transport Position
approx. 0.38 kg / cm2
Total weight:
4,900 kg
Max skew:
0,5°
Max. Upper Slant:
to 16.7°= about 30%
Outrigger Footprint Standard (c.t.c):
5.30 x 4.75 m
Outrigger Footprint Narrow (c.t.c):
6.64 x 3.95 m
Point Load p/Outrigger Plate
approx. 3,569 kg
Power/Fuel:
Diesel / 230V
Crawler Driven:
Yes
Crawler Steered:
Yes
Non-marking:
Yes
Power connection from work platform:
Yes (no generator of its own)
More specificationsLess specifications
