22m JLG telescopic boom lift diesel platform 4m rental?

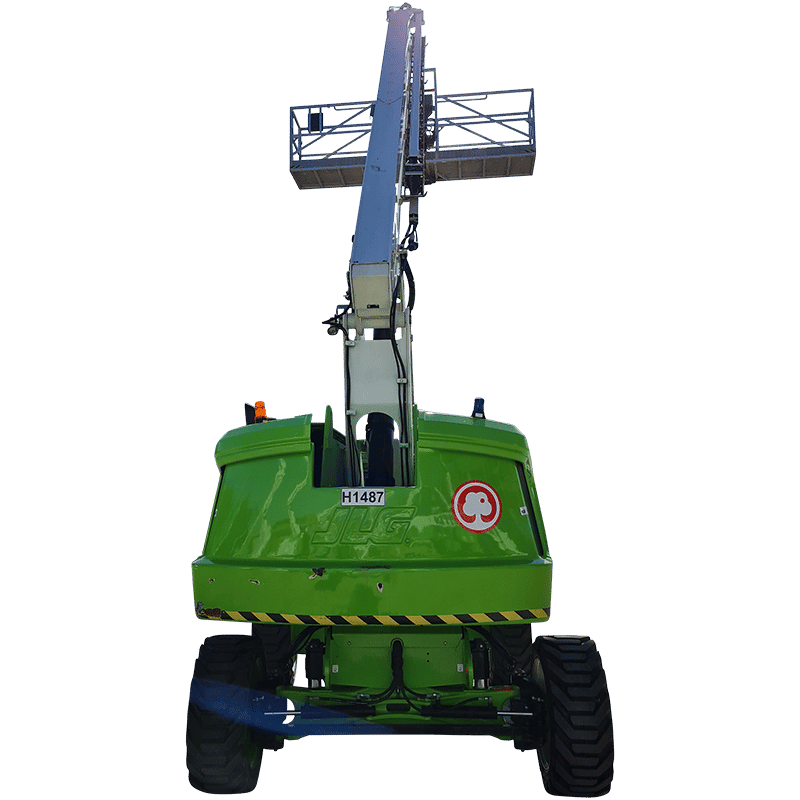

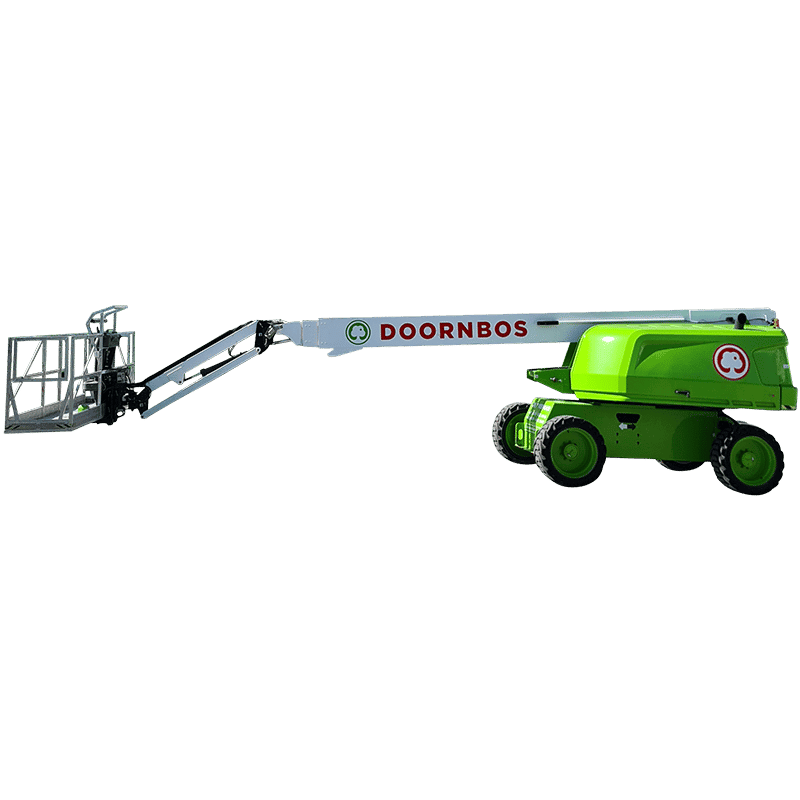

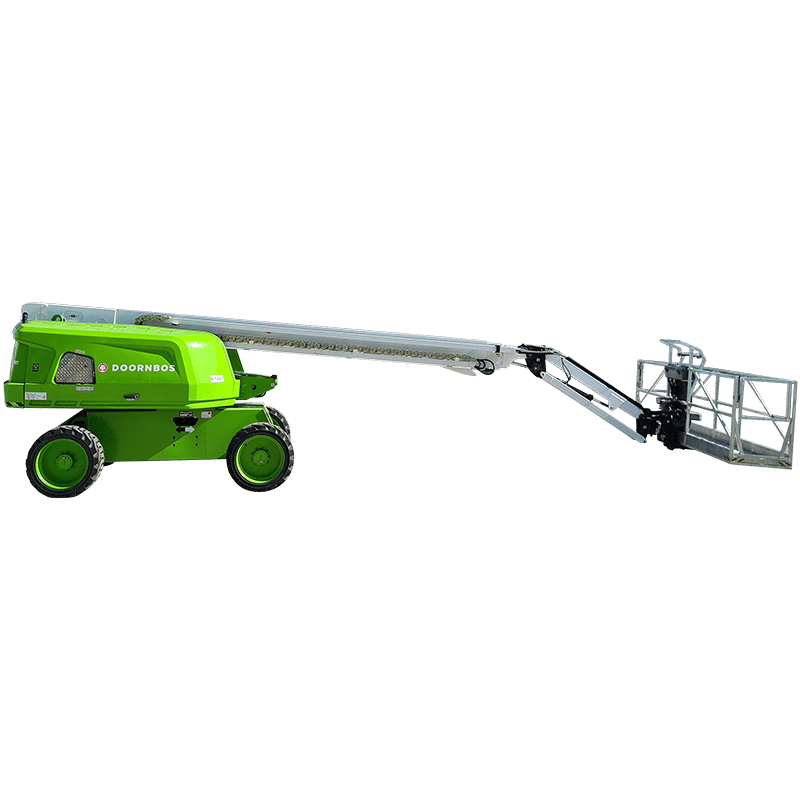

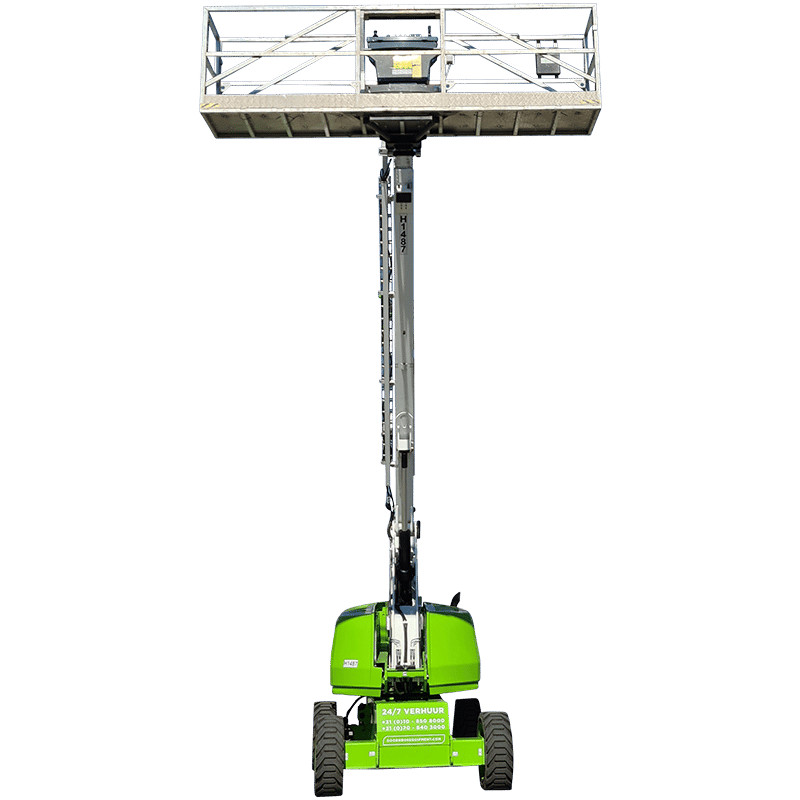

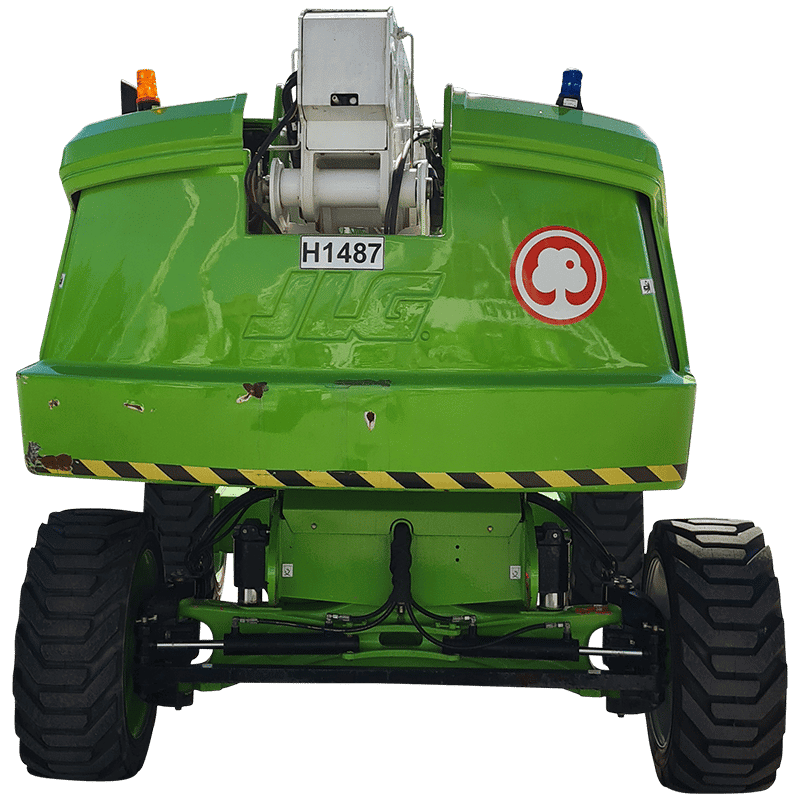

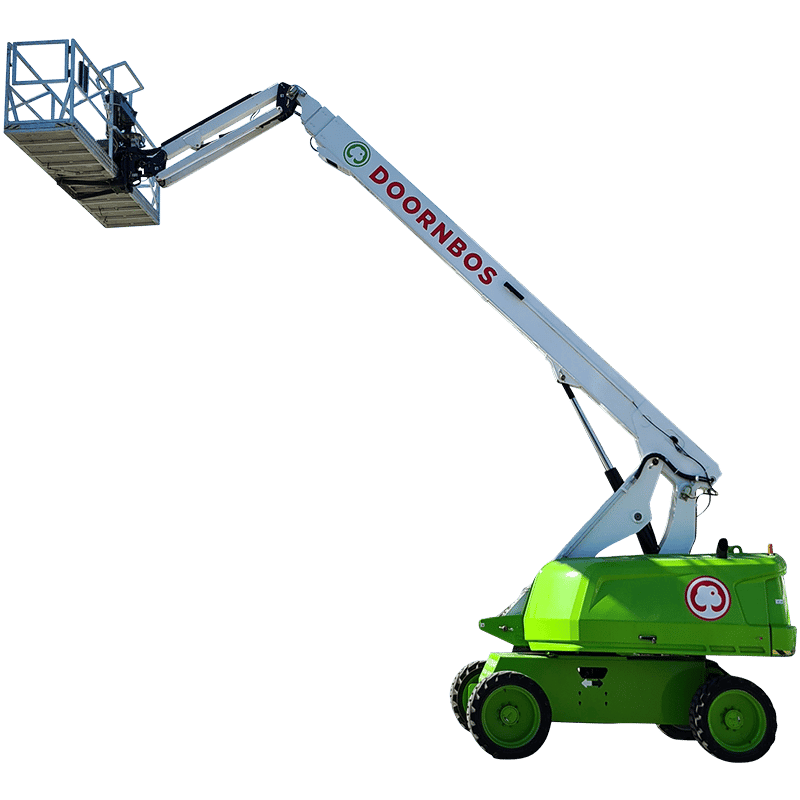

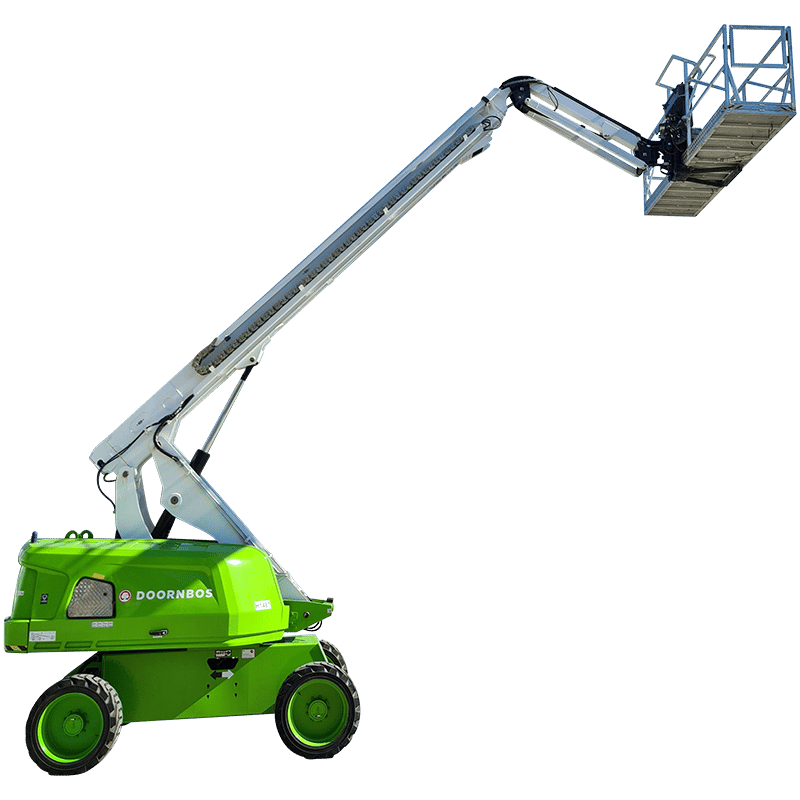

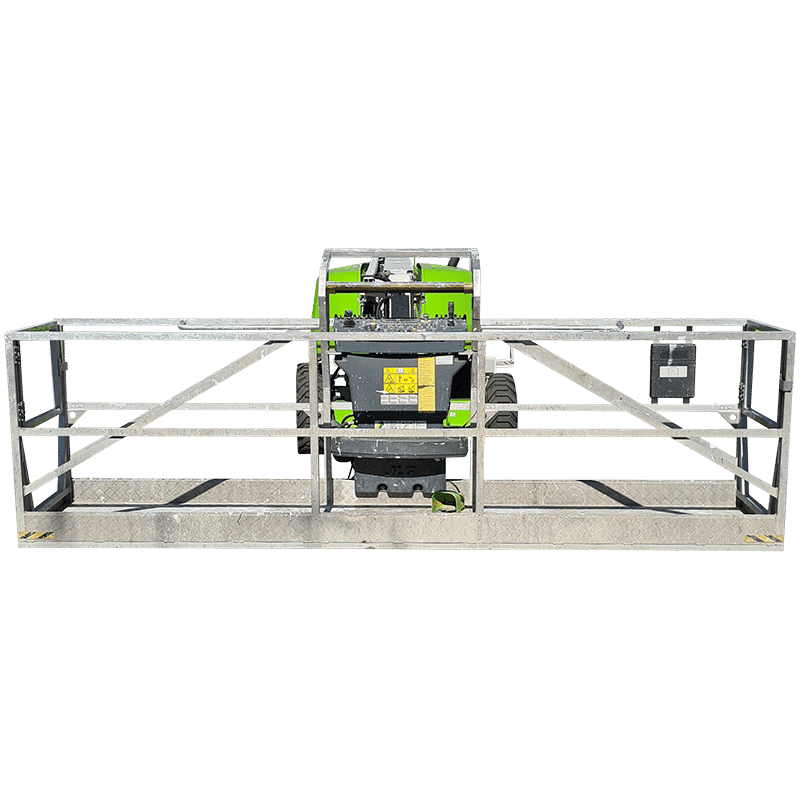

The JLG 660 SJ (Platform 4M) is a diesel-powered telescopic boom lift with a working height of 22.02 m. A telescopic boom lift is ideal when you can reach in a straight line toward the job. The platform of this machine can carry a maximum load of 340 kg / 250 kg. This includes operator and tools, for example. The 4×4 drive makes it possible to perform jobs on rough terrain as well. Of course, you also want the most durable option when renting an aerial work platform. The most recent models are equipped with an EU Stage V diesel engine, meeting the most stringent emission requirements.

  • JLG is a well-known and reliable aerial work platform brand
  • Simple operation
  • Most recent models operate with minimum emissions due to EU Stage V diesel engine
  • We recommend the use of fall protection when working with our telescopic boom lifts. A safety harness is available for rent from us
  • We can also arrange for driving plates, if needed for your operations

If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.



Working Height:

22,02 m

Floor height:

20,02 m

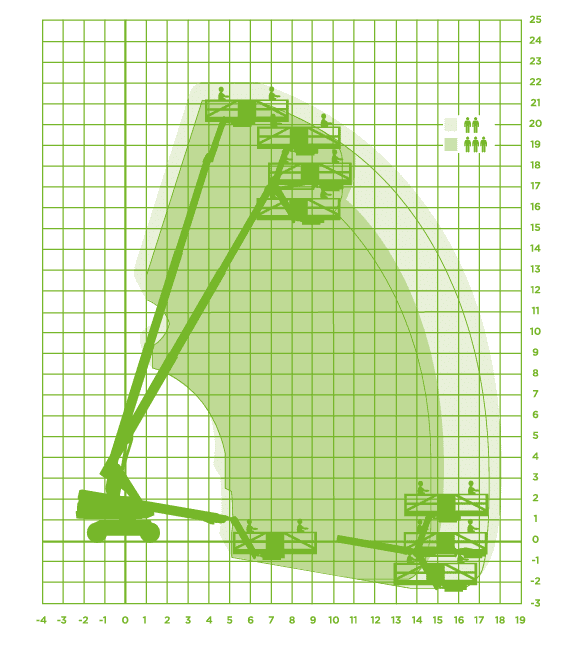

Horizontal working range:

17,40 m

Jib Length:

1,83 m

Working range Jib horizontal:


Working range Jib vertical:


Max. lifting capacity:

340 kg / 250 kg

Platform Dimensions (LxW):

4.00 x 0.91 m

Platform Rotation:


Platform Levelling:


Max horizontal force:

about 40 kg

Max wind speed:

Wind force 6

Setup Width:

2,48 m

Transport dimensions (LxWxH):

11.01 x 2.48 x 2.50 m

Total weight:

11,603 kg

Max skew:



Four-wheel drive:


Four-wheel steering:




Row height from work basket:

22,02 m

Power connection in work basket:


More specificationsLess specifications
