23m RUTHMANN truck mounted work platform diesel rental?

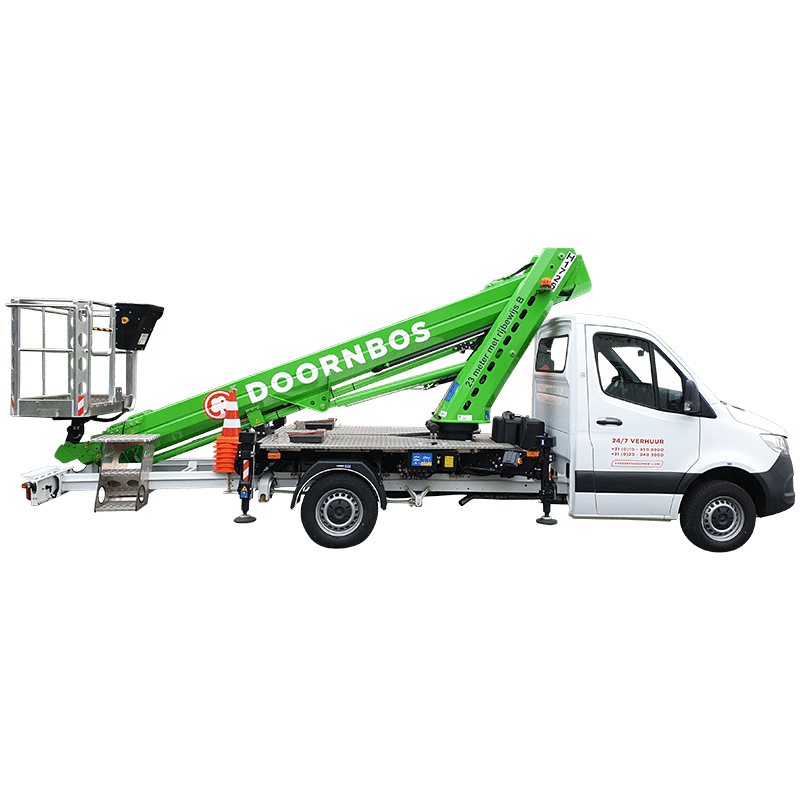

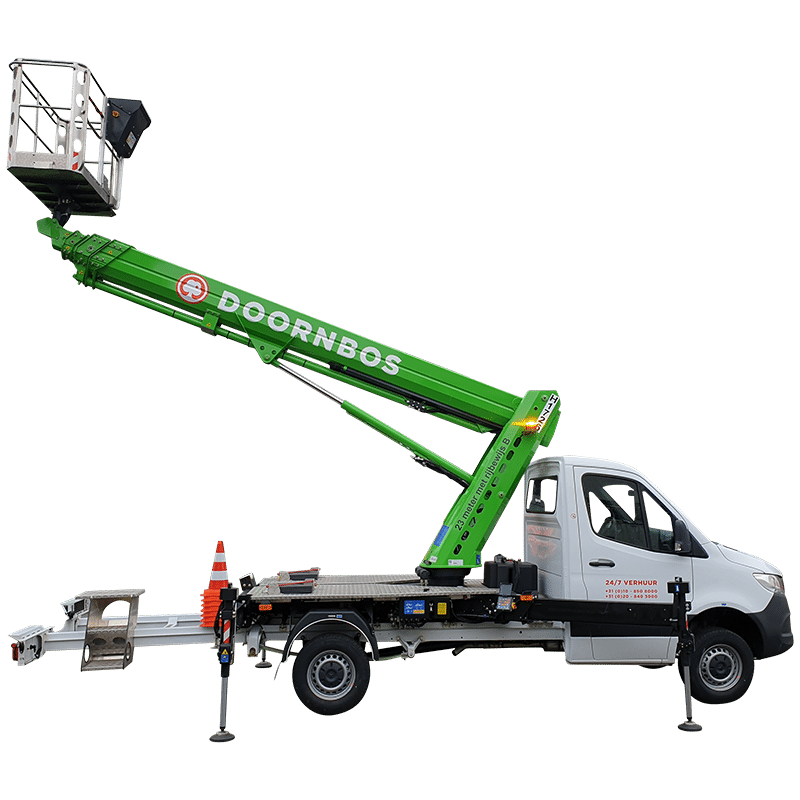

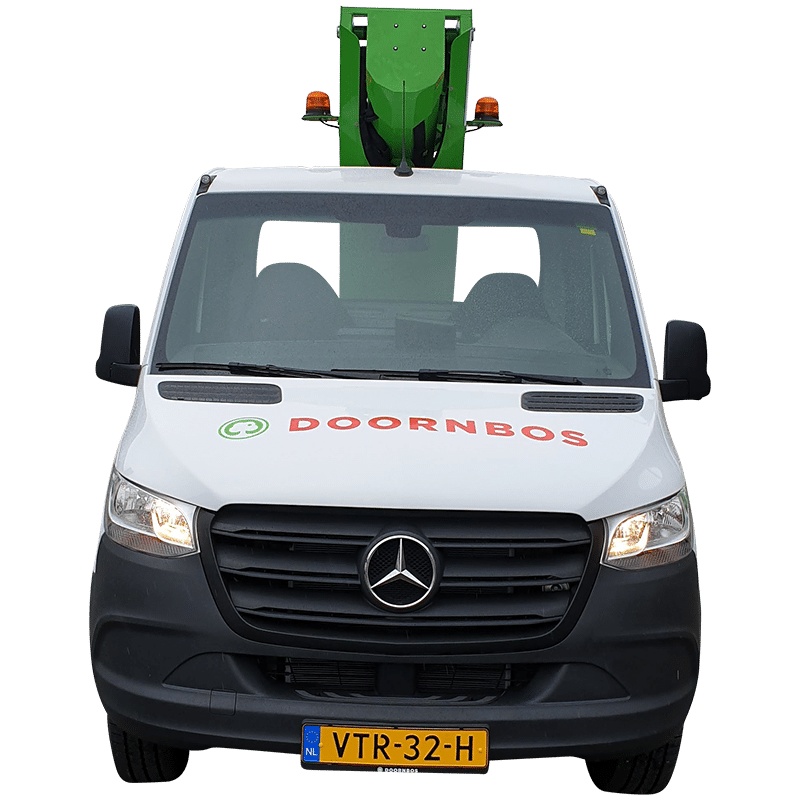

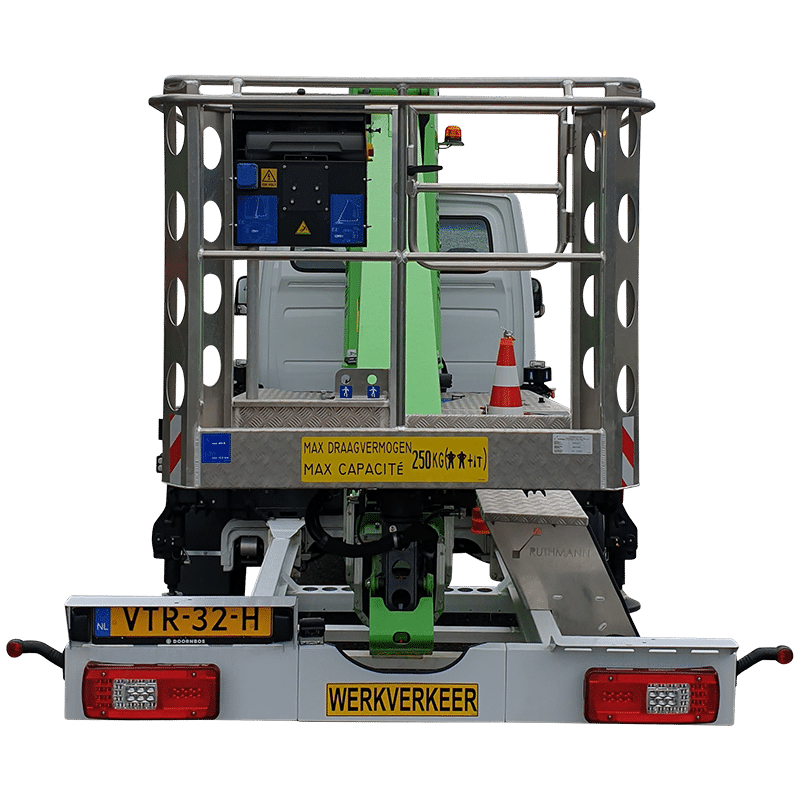

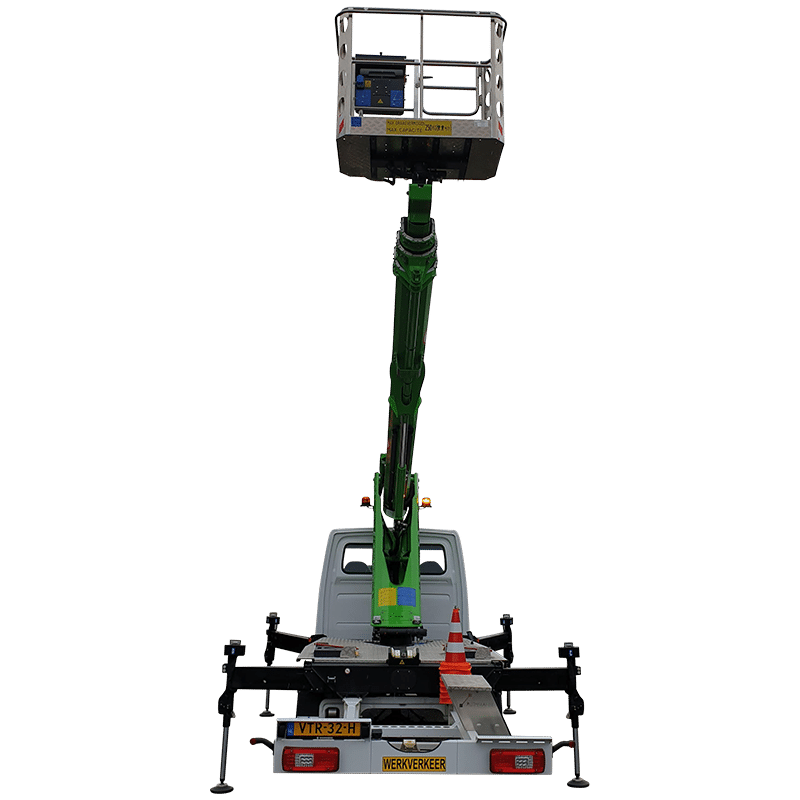

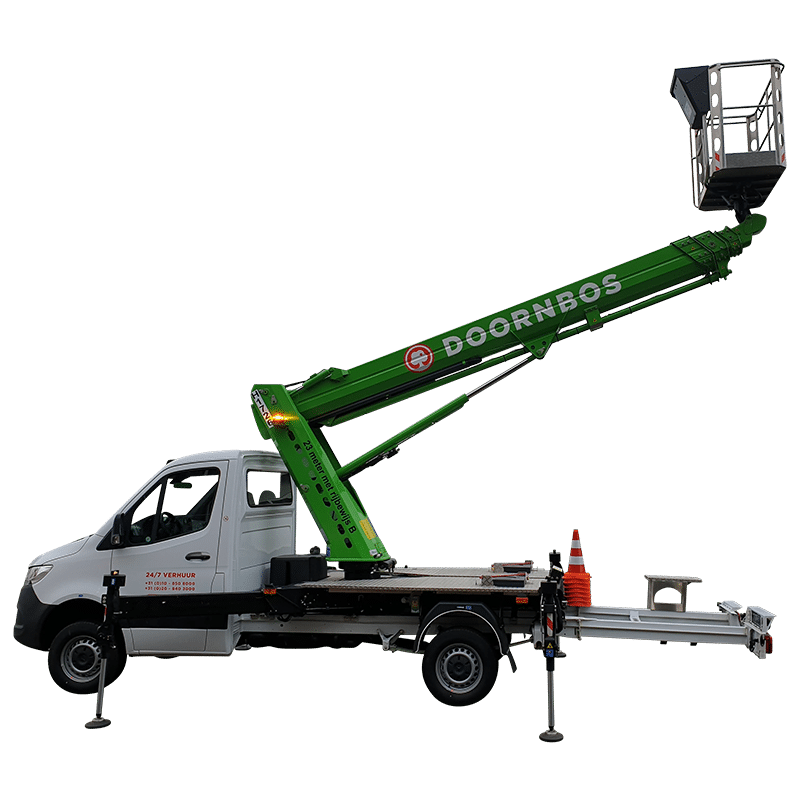

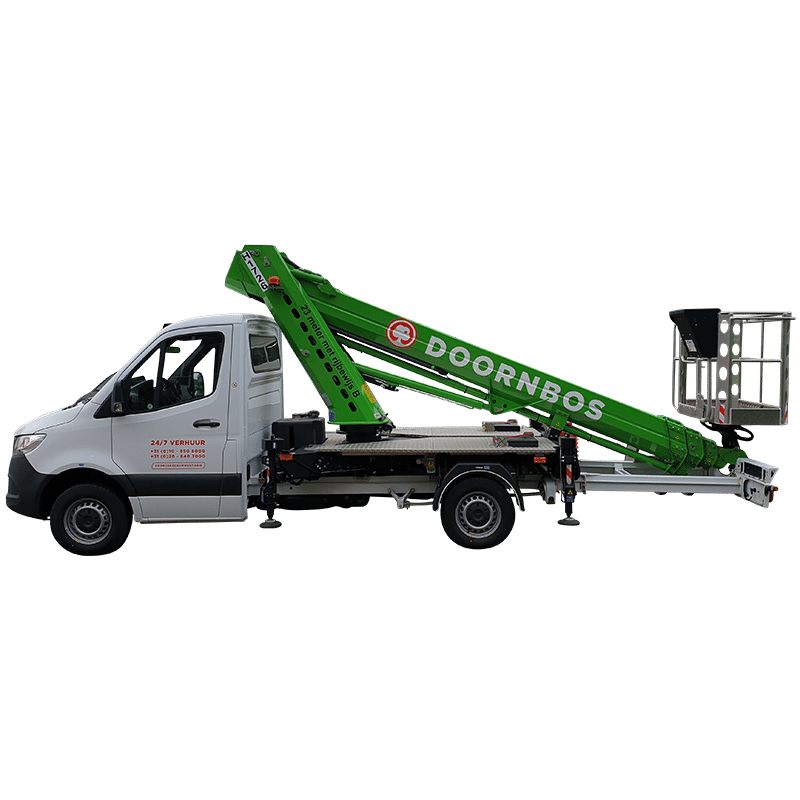

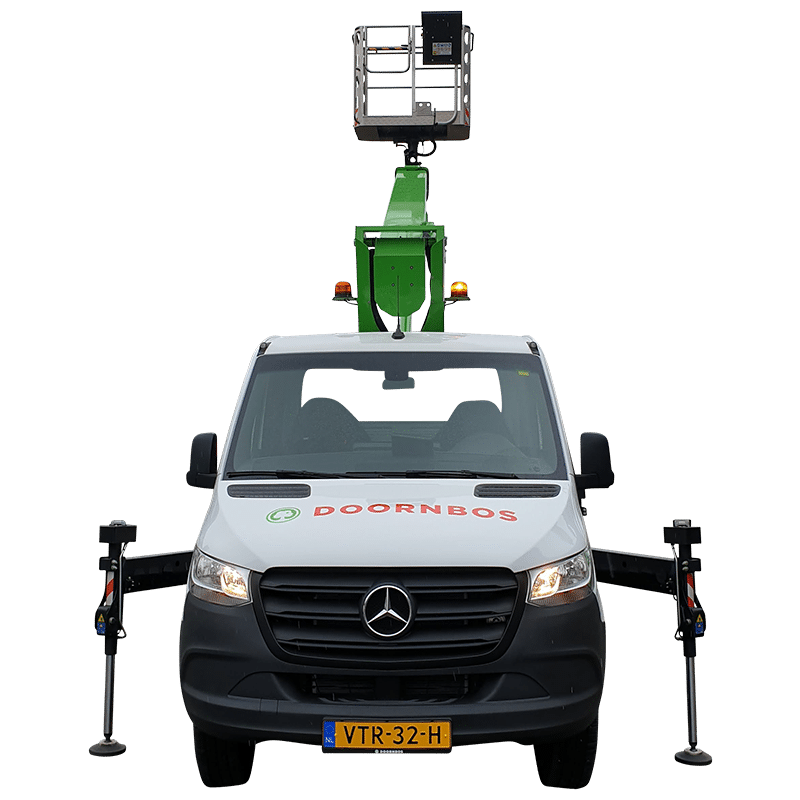

23m RUTHMANN truck mounted work platform diesel rental? The RUTHMANN ECOLINE 230 is a diesel-powered unit with a working height of 23.00 m. The platform of this machine can carry a maximum load of 250 kg. This includes operator and tools, for example.

  • RUTHMANN is a well-known and reliable aerial work platform brand
  • Simple operation
  • Operable with driver’s license B
  • We recommend the use of fall protection when working with our spider work platforms. A safety harness is available for rent from us

If you are inexperienced in operating an aerial work platform, we recommend getting an aerial work platform certificate. During an aerial work platform course, you will learn the things you need to pay attention to in order to work safely with an aerial work platform. The Doornbos Training Centre provides accredited IPAF aerial work platform training courses.

Read moreRead less
Specifications
Downloads
Trainings

Specifications

Working Height:

23,00 m

Platform Height:

21,00 m

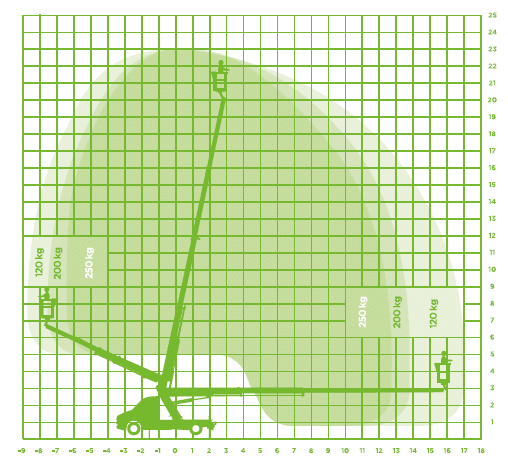

Max horizontal range:

16.90 m

Max. lifting capacity

250 kg

Platform Dimensions (LxW):

1.30 x 0.70 m

Platform Rotation:

Yes

Basket leveling:

Yes

Max horizontal force:

about 40 kg

Max wind speed:

Wind force 6

Transport dimensions:

7.77 x 2,14 x 2,98 m

Total weight:

3,500 kg

Max skew:

5°

Drive:

Diesel

Width Fully Stabilised (c.t.c.): for (h.o.h.):

3,65 m

Width Fully Stabilised (c.t.c.): rear (h.o.h.):

3,58 m

Width Narrow Stabilised (c.t.c.): for (h.o.h.):

2,90 m

Width Narrow Stabilised (c.t.c.): rear (h.o.h.):

2,86 m

Bottom pressure per stamp behind:

approx. 3.262 kg

Bottom pressure per outrigger plate front:

approx. 2.548 kg

Tyres

Rubber (air)

Driver's License:

B

Power connection from work basket:

Yes (no generator of its own)
