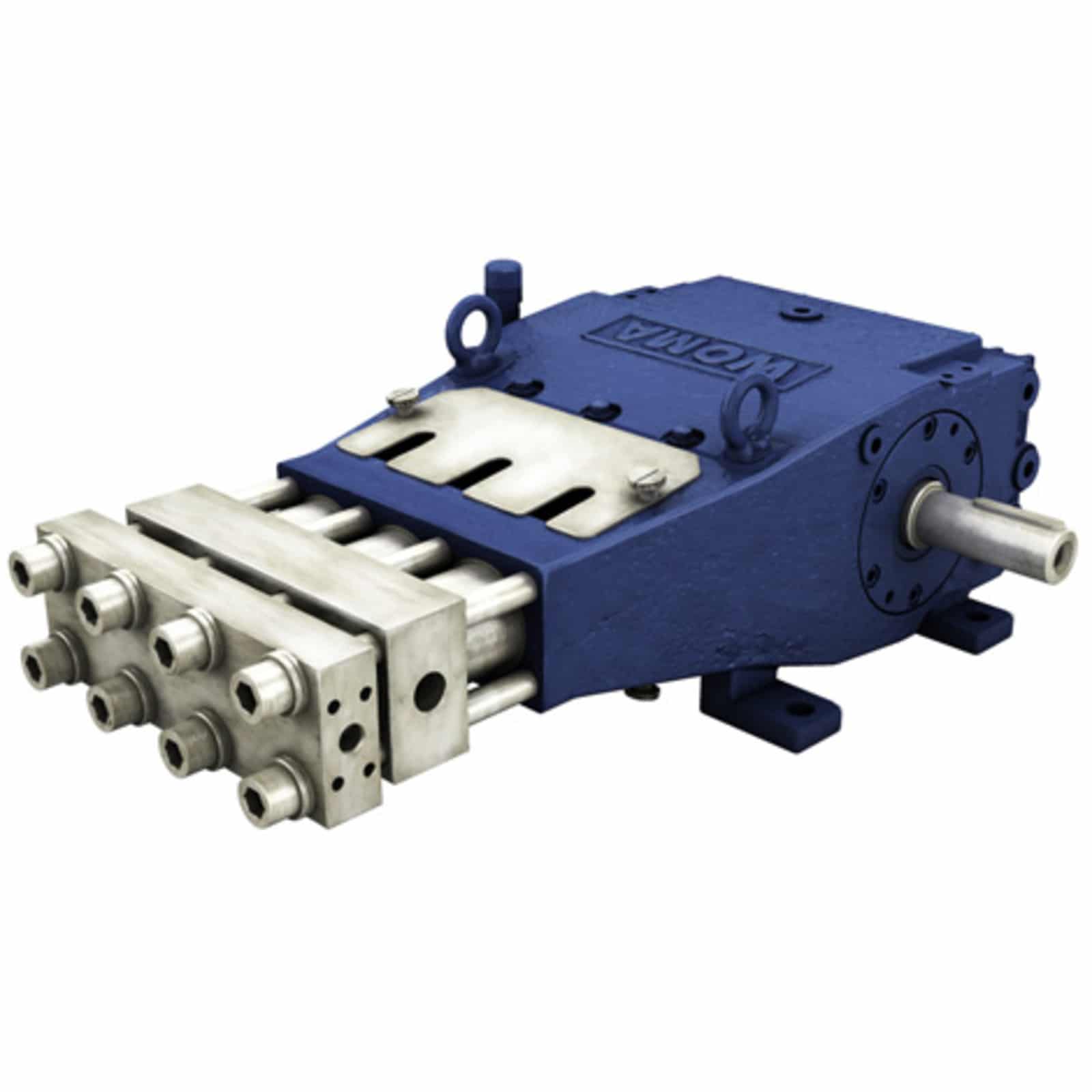

Buy Woma 70m plunger pump?

M-Series pumps are ideally suited for tasks such as cutting, dismantling, decoating and de-rusting. Thanks to the built-in central valve design, these plunger pumps have high volumetric efficiency even at high pressures. The carbide plungers used are extremely robust, offer long service life at very high pressures of up to 3000 bar, and can therefore guarantee low maintenance costs. They are also insensitive to sudden changes in temperature.

The plunger guide ensures long life of the sealing system. The applied sealing water system prevents leakage, enables higher durability of the high-pressure seals and prevents air penetration. A special feature of the M Series is a second shaft end to which another pump can be connected, doubling performance if needed. All gearboxes of WOMA pumps have an integrated oil cooling system. In addition, all WOMA pumps are certified to Atex (ExII2GDT5).

Specifications
Downloads

Specifications

Min/Max. workload:

2,500 - 3,000 bar

Min/Max. flow rate:

5.5 - 9.8 (l/min)

Max power required:

45 kW

Total weight:

117 kg

Dimensions (L x W x H):

736 x 529 x 241 mm
