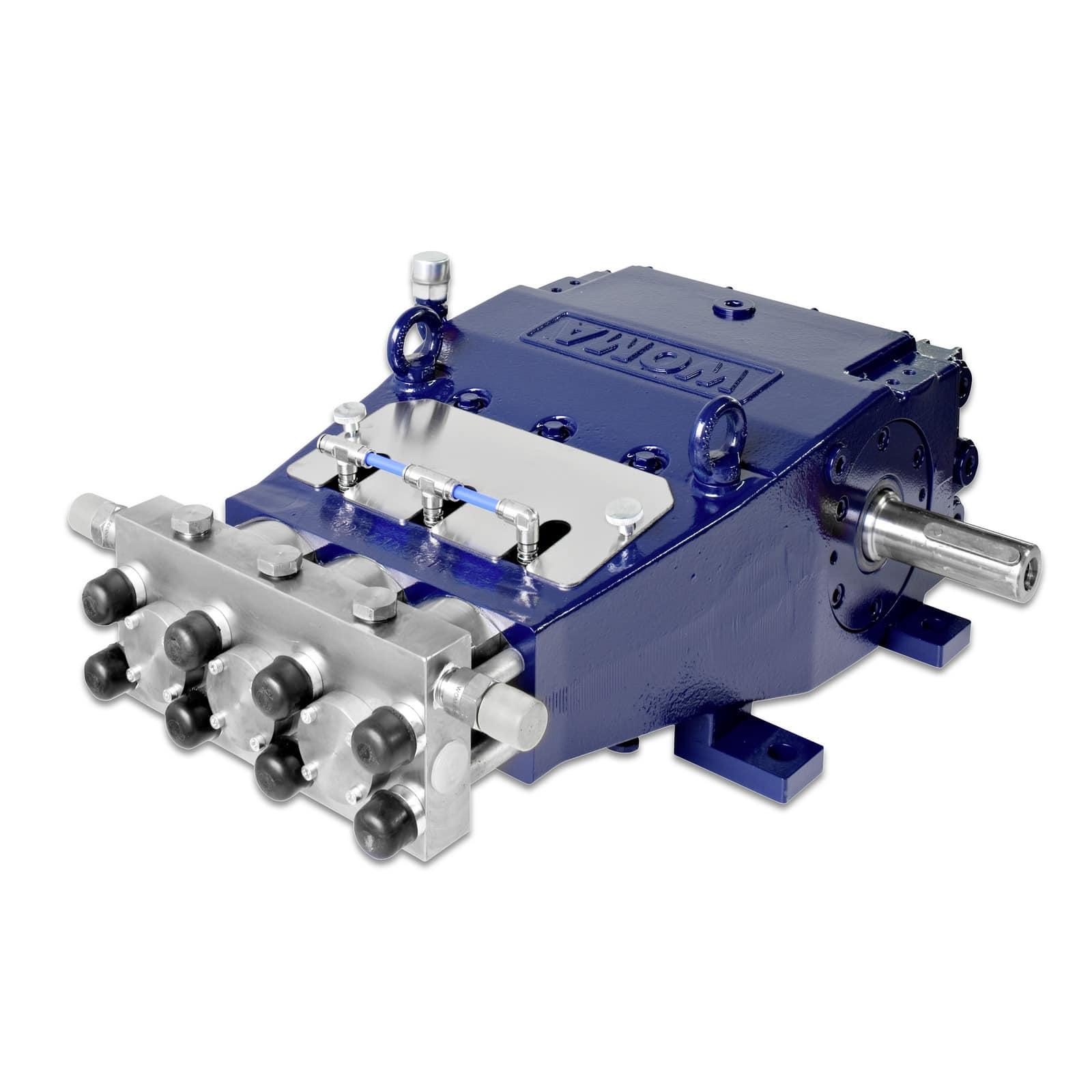

Buy Woma 70y plunger pump?

Y Series ultra-high-pressure pumps are particularly compact. Their small size and low weight allow them to be easily installed in units with very small base frames. With working pressures up to 1000 bar, the pumps of the Y series are ideally suited for the most diverse cleaning tasks, e.g. in the chemical industry, the oil and gas industry and in the field of ship cleaning. The applied sealing water system prevents leakage, enables particularly high durability of the high-pressure seals and prevents air penetration.

Optional Y Series pumps can be equipped with suction valve elevators. This elegant alternative to a bypass valve circulates water when there is no pressure in the pump head and the water tool is not operated. An alternative is the pump with coated steel plungers, which increases wear resistance and resistance to temperature shock. WOMA also supplies ceramic plungers for the Y Series, which are highly resistant to acids and alkaline liquids. All gearboxes of WOMA pumps have an integrated oil cooling system. In addition, all WOMA pumps are certified to Atex (ExII2GDT5).

Specifications
Downloads

Specifications

Min/Max. workload:

700 - 1,000 bar

Min/Max. flow rate:

16 - 40 (l/min)

Max power required:

52 kW

Total weight:

110 kg

Dimensions (L x W x H):

645 x 529 x 241 mm
